• Free Omada Controller software enables administrators to easily manage hundreds of EAPs
• Supports passive PoE for convenient installation up to 100meters
• Ceiling mounting design with chassis make it easy to deploy on a wall or ceiling
• Captive portal provides one convenient method of authentication for Wi-Fi guests
• Facebook Wi-Fi and SMS authentication help to boost your business
• Multi-SSID divides multiple wireless networks for different users
• Enterprise class Wi-Fi security help to decrease network security threats
• Supports management vlan for an enhanced network management

Flexible Placement
Easy mounting design & PoE
The EAP’s elegant appearance and easy mounting design with chassis make it easy to be integrated seamlessly into any wall or ceiling surface to blend in with most interior decorations. EAP110 supports Passive PoE to make deployment effortless and flexible.

Free Centralized Management Platform
Omada Controller Software
Manage and monitor hundreds of EAPs with ease, all from a single location. The TP-Link Omada Controller software provides an intuitive management interface. Control and map out the entire network from any connected PC. There’s no added cost, and no need for special training. Business Wi-Fi management has never been so efficient and cost-effective.

Efficient Guest Authentication with Facebook and SMS Support
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

Unified Wi-Fi for Multi-user Business Environment
Designed for Enterprise Performance
With easy mounting design, PoE power supply, Centralized management software, Captive portal, Auto RF management, and Enterprise hardware, EAP is specially designed for the highest-density, most demanding enterprise environments, including schools, hotels, and enterprises.

Features
• Omada Controller Software enables administrators to easily manage hundreds of EAPs
• Support Passive PoE for convenient and affordable installation
• Simple mounting design to easily mount to a wall or ceiling
• 300Mbps wireless data rate for uninterrupted wireless connection
• Captive portal provides one convenient method of authentication for Wi-Fi guests
• Facebook Wi-Fi and SMS authentication help to boost your business
• Rate limit on per SSID to restrict the bandwith of each client
• Access Control restricts or allows the client to access the specified network segment
• Reboot Schedule enables all the APs to be rebooted automatically within a specified time
• WPA/WPA2-enterprise, 802.1X with RADIUS secure authentication and rogue access point detection ensure the security of WLAN
• Multi-SSID divides multiple wireless network for different users
• Load balance ensures large numbers of users have smooth network experiences in large business networks
• Compatible with 802.11 b/g/n products
• Multiple operating modes satisfy different application conditions including managed AP and standalone AP modes
• QoS function prioritizes data, voice, and video applications to ensure time-sensitive traffic takes priority over all other traffic

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	60 months

HARDWARE FEATURES

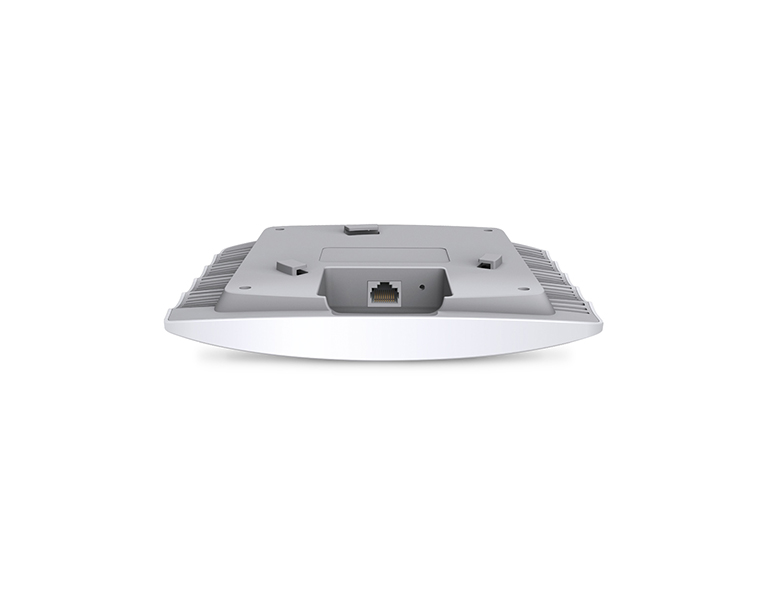

Interface	Fast Ethernet (RJ-45) Port *1（Support Passive PoE）
Button	Reset
Power Supply	24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption	2.8W
Dimensions ( W x D x H )	189.5×170.5×29.7mm
Antenna Type	Internal 2* 4dBi Omni
Mounting	Ceiling /Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency	2.4-2.4835GHz
Signal Rate	11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic)
Reception Sensitivity	300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER
Wireless Functions	Multiple SSIDs （Up to 8 SSIDs） Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control （Adjust Transmit Power on dBm） QoS(WMM) Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client
Wireless Security	Captive Portal Authentication Access Control Wireless MAC Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
Transmission Power	CE: ≤19dBm(EIRP) FCC: ≤21dBm
MANAGEMENT
Omada Cloud Access	Yes
Omada App	Yes
Omada Cloud Controller	Yes
Centralized Management	• Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Omada Controller Software	Yes
Cloud Access	Yes (Through OC300, OC200, or Omada Software Controller)
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1,v2c
System Logging Local/Remote Syslog	Local/Remote Syslog
Web-based Management	HTTP/HTTPS
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes
OTHERS
Certification	CE, FCC, RoHS
Environment	Operating Temperature: 0℃~40℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Package Contents	300Mbps Wireless N Ceiling Mount Access Point EAP110 Passive PoE Adapter, Power Cord, Mounting Kits, Installation Guide
System Requirements	Microsoft Windows 10/8/7/Vista/XP

*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
