• 802.11ac for up to 867Mbps on 5GHz wireless data rate*¹• Ideal for long-range wireless transmission up to 5 km.^*2
• Auto-pairing and agile LEDs for efficient deployment

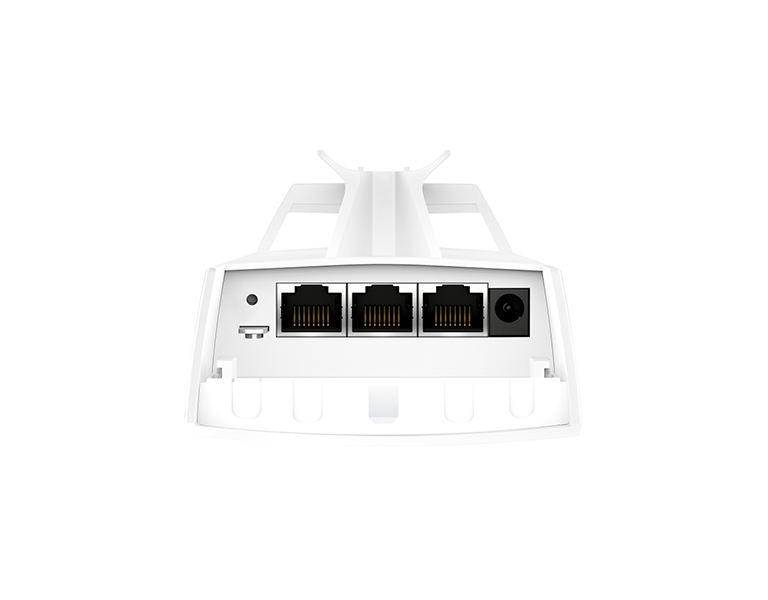

• 3× Gigabit Ethernet ports for more high-speed IP camera connections.
• Supports Omada SDN for remote and centralized management.
• IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.^*3

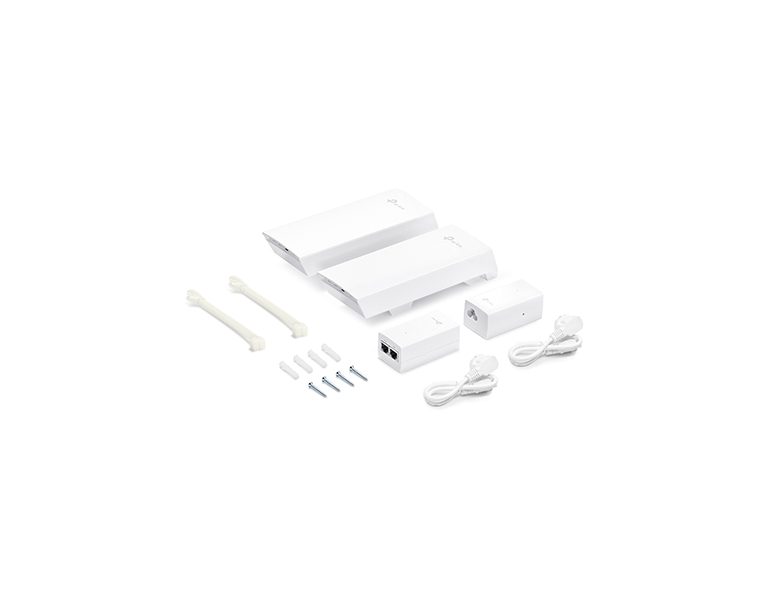

• Supports Passive PoE for flexible deployment (adapter included).

Omada Solution
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	24 months

Main Design
LAN Interfaces	3x Gigabit Ethernet Port
Wi-Fi Standards	IEEE 802.11a/n/ac
Maximum Data Rate	867 Mbps (5 GHz)
Wireless Client Capacity	8
Antennas	Internal 2×2 Dual-polarized directional MIMO antenna 5 GHz: 11.0 dBi
Transmit Power	CE: <23dBm (5 GHz, band 1/2, EIRP) <30dBm (5 GHz, band 3, EIRP) FCC: <22dBm (5GHz band 1/4)
Reception Sensitivity	5GHz: 11ac VHT20 MCS0:-94dBm 11ac VHT20 MCS8:-71dBm 11ac VHT40 MCS0:-90.5dBm 11ac VHT40 MCS9:-66.5dBm 11ac VHT80 MCS0:-87.5dBm 11ac VHT80 MCS8:-63dBm
Centralized Management
Omada Software Controller	Yes
Omada Hardware Controller	Yes
Omada APP	Yes
Security
Captive Portal Authentication	Yes
Access Control	Yes
Maximum number of MAC Filter	4000
VLAN	Yes
Rogue AP Detection	Yes
Wireless Encryption	Yes
Wireless Function
Multiple SSIDs	8
Channel	5G: 36,40,44,48,52,56,60,64,100,104,108,112,116, 120,124,128,132,136,140
Enable/Disable Wireless Radio	Yes
Enable/Disable SSID Broadcast	Yes
Guest Network	Yes
QoS (WMM)	Yes
Mesh	Yes
Beamforming	Yes
MU-MIMO	5G 2x2 MU-MIMO DL
Rate Limit	Yes
Load Balance	Yes
Airtime Fairness	Yes
RADIUS Accounting	Yes
MAC Authentication	Yes
Reboot Schedule	Yes
Wireless Schedule	Yes
Wireless Statistics	Yes
Static IP/Dynamic IP	Yes
Support Data Rates
802.11ac	6.5 Mbps to 867 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80)
802.11n	6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40)
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
Management
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
Web-based Management	Yes
SNMP	Yes
SSH	Yes
Restore & Backup	Yes
Firmware update via Web	Yes
NTP	Yes
System Log	Yes
Physical & Environment
Power Supply	12V DC / 24V Passive PoE
Maximum Power Consumption	11.5W
Reset	Yes

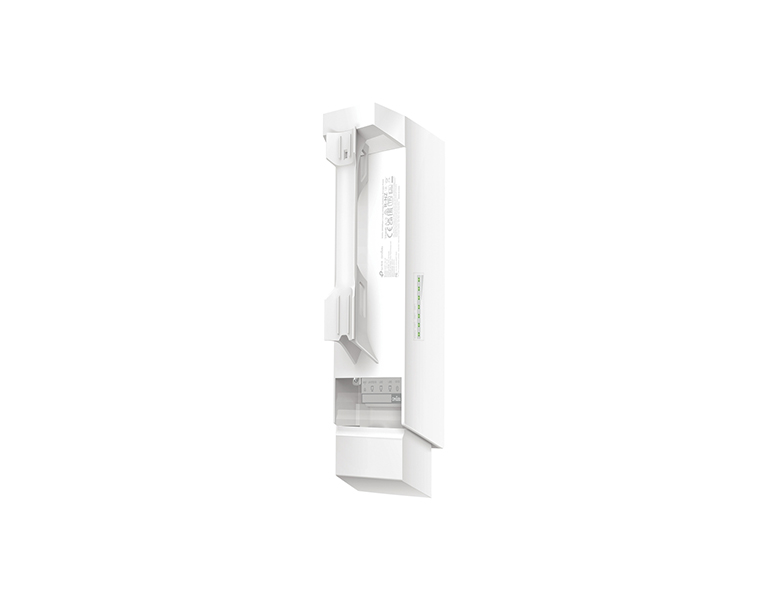

Mounting	Pole mounting (Accessories included)
Others
Certifications	CE, FCC, RoHS
Dimensions (W x D x H)	224 × 79 × 60 mm
Net Weight	330.9g
Enclosure Material / Rack Material	Enclosure: ASA-HB Pole Mounting Straps: Nylon 66
Lightning Protection	Air discharge: ±8kV Contact discharge: ±4kV Common mode 10/700: ±6kV
Environment	Operating Temperature: -40 °C – 70 °C Storage Temperature: -40 °C – 70 °C Operating Humidity:10% – 90% non-condensing Storage Humidity: 5% – 90% non-condensing
