• Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.¹• High-Density Connectivity: 4x increased capacity to connect more devices simultaneously.²• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)³, Centralized Cloud Management, and Intelligent Monitoring.
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
• Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.⁴• PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation.
• Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/Voucher, etc.) and abundant wireless security technologies.

High-Density Connectivity with 4x Increased Capacity
OFDMA⁵ and Uplink & Downlink MU-MIMO⁶ increase network capacity by up to 4x versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously². Leverage multi-user capabilities and upgrade your business like never before.

Advanced Wi-Fi Speed with 4 Spatial Streams
The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 1775 Mbps (1201 Mbps on a 5 GHz band and 574 Mbps on a 2.4 GHz band)¹. With 4 spatial streams, multi-user throughput is incredibly increased to drive more applications.

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.

Easy Deployment & Higher Performance by Omada Mesh Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.

Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.

Always Stay Smooth with Fast Roaming

Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

Secure Guest Network with Facebook Wi-Fi and SMS Login
Guest Network provides elevated secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and power up your business.

^†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
^‡4× Increased Capacity refers to increase in median throughput under dense environment compared to standard 4×4 11ac access point.
^§Zero-Touch Provisioning and Auto Channel Selection and Power Adjustment require the use of Omada Cloud-Based Controller. Note that EAP620 HD v1.0 doesn't support Omada Cloud-Based Controller. Please go to https://www.tp-link.com/en/omada-cloud-based-controller/product-list/ to confirm which models are compatible with Omada Cloud-Based Controller.
^△Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of Omada SDN controllers. Please go to https://www.tp-link.com/en/omada-mesh/product-list/ to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.
*Use of OFDMA and MU-MIMO requires clients to also support OFDMA and MU-MIMO.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	60 months

HARDWARE FEATURES

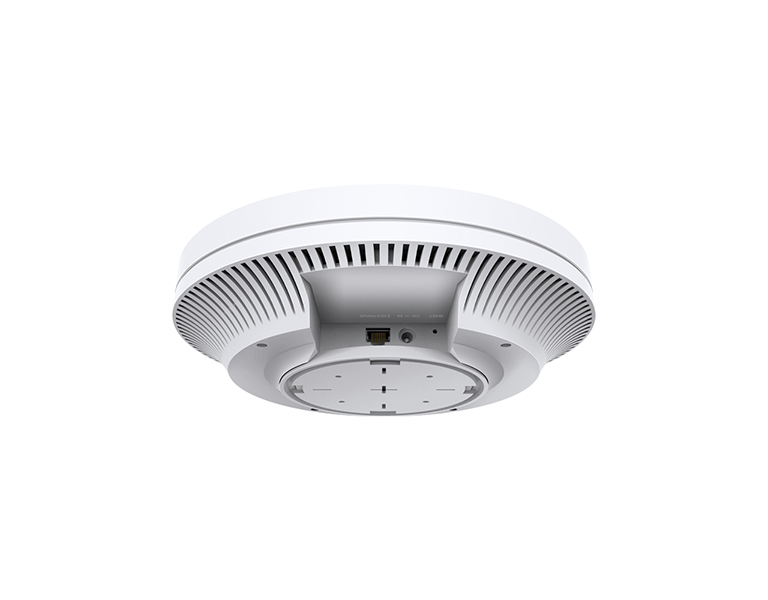

Interface	1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE and Passive PoE)
Button	Reset
Power Supply	• 802.3at PoE • 48 V Passive PoE • 12 V / 1.5 A DC
Power Consumption	• EU: 14.4 W (For PoE); 13.1 W (for DC)
Dimensions ( W x D x H )	160 × 160 × 33.6 mm
Antenna Type	Internal Omni Antenna • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi
Mounting	• Ceiling /Wall Mounting (Kits included) • Junction Box Mounting
WIRELESS FEATURES
Wireless Standards	IEEE 802.11ax/ac/n/g/b/a
Frequency	2.4 GHz and 5 GHz
Signal Rate	• 5 GHz: Up to 1201 Mbps • 2.4 GHz: Up to 574 Mbps
Wireless Functions	• 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO • Seamless Roaming • Omada Mesh • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client
Wireless Security	• Captive Portal Authentication • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power	• CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz band1/2, EIRP) <25 dBm (5 GHz band3) • FCC: <25 dBm (2.4 GHz) <25 dBm (5 GHz)
MANAGEMENT
Omada App	Yes
Centralized Management	• Omada Cloud-Based Controller (Supported by EAP620 HD v2.0 and above) • Omada Hardware Controller OC300 • Omada Hardware Controller OC200 • Omada Software Controller
Cloud Access	Yes, through • OC300 • OC200 • Omada Software Controller • Omada Cloud-Based Controller (Supported by EAP620 HD v2.0 and above)
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
System Logging Local/Remote Syslog	Local/Remote Syslog
SSH	Yes
Web-based Management	HTTP/HTTPS
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP620 HD v2.0 and above)
OTHERS
Certification	CE, FCC, RoHS
Package Contents	• EAP620 HD • Power Adapter • Ceiling / Wall Mounting Kits • Installation Guide
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment	• Operating Temperature: 0–40 ℃ • Storage Temperature: -40–70 ℃ • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
