• Blazing-Fast AX3000 WiFi 6 Speeds:: 574 Mbps on 2.4 GHz and 2402 Mbps on 5GHz totals 2976 Mbps WiFi speeds. ^†
• Multiple Gigabit Ports: Connect multiple devices with 4× Gigabit Ethernet Ports.
• Convenient Deployment: Supports both 802.3bt PoE++ and DC (adapter included) for easy and quick deployment.
• No Installation needed:Supports desktop installation without the need for additional setup.

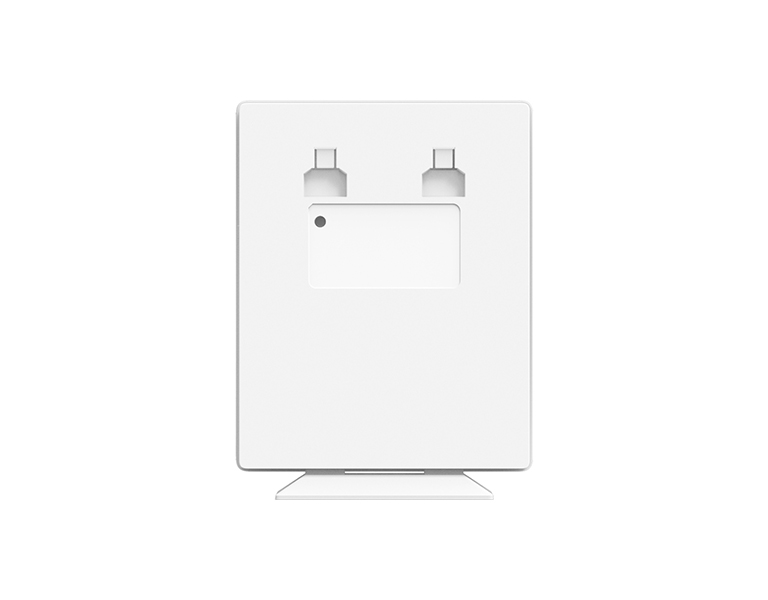

• High Flexibility: Provide flexible installation solutions for both desktop and wall mounting.
• Advanced Functions: Omada Mesh, Seamless Roaming, Centralized Cloud Management.§

Software-Defined-Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateway across multiple sites — all from a single interface.

^†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

^‡Use of WiFi 6 (802.11ax) and its features like MU-MIMO, requires clients to support the corresponding features.

^§Seamless Roaming, and Captive Portal require the use of Omada SDN controllers.

^△This feature needs to be used with the switch that supports VPN Server. And at the same time, the Omada controller needs to be used with the switch that supports the Cli Template.

*Coverage is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.

**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	60 months

Specifications

Main Design

Interface

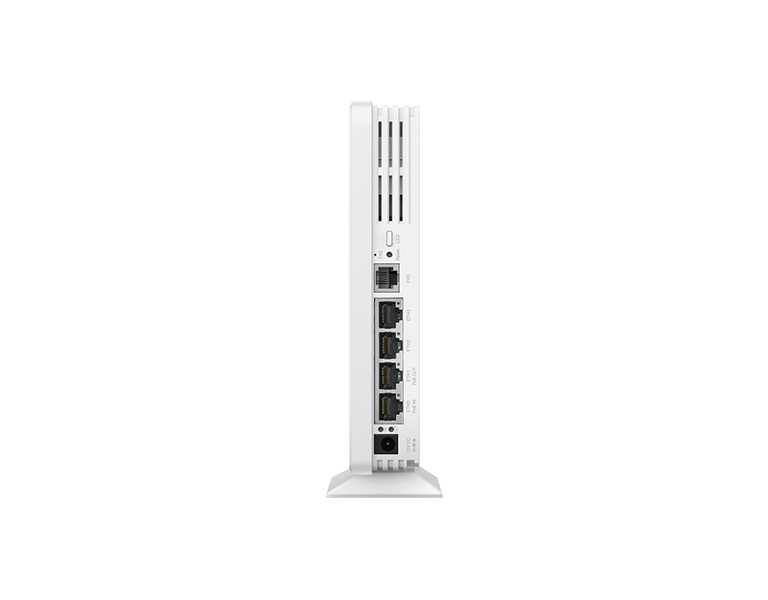

4 x 1Gbps Ethernet Ports +1 x FXS Port

(One Ethernet port supports PoE Out: 802.3at/af output at 802.3bt input, 802.3af class 2 output at 802.3at input)

Wi-Fi Standards

IEEE 802.11 a/b/g/n/ac/ax

Maximum Data Rate

574 Mbps (2.4 GHz) +2402 Mbps (5 GHz)

Wireless Client Capacity

250+

Antennas

2.4 GHz: 2x 5 dBi

5 GHz: 3x 4.7 dBi

Transmit Power

CE: < 20 dBm (2.4 GHz, EIRP); < 23 dBm (5 GHz, band 1&band 2, EIRP); < 29 dBm (5 GHz, band 3, EIRP);

FCC: < 26 dBm (2.4 GHz); < 27 dBm (5 GHz)

Reception Sensitivity

2.4GHz:

11ax HE20 MCS0:-95.5dBm; 11ax HE20 MCS11:-65.5dBm

11ax HE40 MCS0:-94dBm; 11ax HE40 MCS11:-64.5dBm

5GHz:

11ax HE20 MCS0:-94.5dBm; 11ax HE20 MCS11:-64.5dBm

11ax HE40 MCS0:-92.5dBm; 11ax HE40 MCS11:-62.5dBm

11ax HE80 MCS0:-90dBm; 11ax HE80 MCS11:-60.5dBm

11ax HE160 MCS0:-86.5dBm; 11ax HE160 MCS11:-57dBm

Centralized Management

Omada Software

Controller

Yes

Omada Hardware

Controller

Yes

Omada Cloud-Based

Controller

Yes

Omada APP

Yes

Security

Captive Portal Authentication

Yes

Access Control

Yes

Maximum number of MAC Filter

4000

Wireless Isolation

between Clients

Yes

VLAN

Yes

Rogue AP Detection

Yes

Wireless Encryption

WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

802.1X Support

Yes

Wireless Function

Multiple SSIDs

16 (8 on each band)

Channel

2G:1-13

5G: 36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132,136,140

Enable/Disable Wireless Radio

Yes

Enable/Disable SSID

Broadcast

Yes

Guest Network

Yes

Automatic Channel

Assignment

Yes

Transmit Power Control

Adjust transmit Power on dBm

QoS (WMM)

Yes

Seamless Roaming

Yes

Mesh

Yes

Beamforming

Yes

MU-MIMO

2*2 MU-MIMO DL/UL

MIMO

2×2 (2.4G & 5G) MU-MIMO

OFDMA

UL/DL OFDMA

Rate Limit

Based on SSID/Client

Load Balance

Yes

Airtime Fairness

Yes

Band Steering

Yes

RADIUS Accounting

Yes

MAC Authentication

Yes

Reboot Schedule

Yes

Wireless Schedule

Yes

Wireless Statistics

Yes

Static IP/Dynamic IP

Yes

Support Data Rates

802.11ax

8 Mbps to 2402 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80/160)

802.11ac

6.5 Mbps to 866 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80/160)

802.11n

6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40)

802.11g

6, 9, 12, 18, 24, 36, 48 ,54 Mbps

802.11b

1, 2, 5.5, 11 Mbps

802.11a

6, 9, 12, 18, 24, 36, 48 ,54 Mbps

Management

LED ON/OFF Control

Yes

Management MAC

Access Control

Yes

Web-based Management

Yes

SNMP

v1, v2c, v3

SSH

Yes

Restore & Backup

Yes

Firmware update via Web

Yes

NTP

Yes

System Log

Yes

Email Alerts

Yes

Physical & Environment

Maximum Power

Consumption

Mode	Power Consumption	System Configuration	Wi-Fi Radios
DC power	15.8W	• 4*1Gbps Ethernet Enable • BLE Enable • FXS Enable • PoE Out Disable	2.4GHz(2x2) Tx 20dBm (EIRP) 5GHz(2x2) Tx 23dBm(band 1&band 2, EIRP), 29 dBm (band 3, EIRP)
802.3bt	18.7W	• 4*1Gbps Ethernet Enable • BLE Enable • FXS Enable • PoE Out Enable Supports 802.3at/af (selectable)	2.4GHz(2x2) Tx 20dBm (EIRP) 5GHz(2x2) Tx 23dBm(band 1&band 2, EIRP), 29 dBm (band 3, EIRP)
802.3at	18.7W	• 4*1Gbps Ethernet Enable • BLE Enable • FXS Enable • PoE Out Enable Supports 802.3af class2(selectable)	2.4GHz(2x2) Tx 20dBm (EIRP) 5GHz(2x2) Tx 23dBm(band 1&band 2, EIRP), 29 dBm (band 3, EIRP)
802.3af	10W	• 4*1Gbps Ethernet Enable • BLE Enable • FXS Enable • PoE Out Disabl	2.4GHz(2x2) Tx 20dBm (EIRP) 5GHz Disable
