• AX3000 Dual-Band WiFi: Supports 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz^*• 6 Gigabit Ethernet Ports: 1 gigabit SFP and 5 gigabit RJ45 ports provide high-speed wired connectivity.
• Omada Mesh Technology: Seamlessly connects to EAPs that support mesh technology, ideal for large-scale scenarios.^**• Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
• Boosted Coverage: Triple external antennas extend and concentrate the Wi-Fi signals.
• High-Security VPN: Supports multiple VPN protocols including IPSec / SSL / Wireguard / PPTP / L2TP VPN, helping users to establish remote connections more flexibly.^△•Abundant Security Features: Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data.

Ubiquitous Connectivity Starts with WiFi 6
ER706W is an enterprise-grade dual-band wireless router. It’s ideal for remote administration that requires high performance due to the revolutionary combination of the latest WiFi 6 technologies, including HE160, OFDMA, 1024 QAM, and more.^‡ Simultaneously supporting 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, ER706W’s concurrent transmission rate reaches up to 3 Gbps.^* Bufferless network experience is at your fingertips.

Up to Five WAN Ports & One USB 3.0 Port for Mobile Broadband
Up to 5× WAN SFP and RJ45 ports allow the router to support various internet access requirements. Multi-WAN Load Balancing distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband. The USB 3.0 port delivers a higher transmission rate for mobile connectivity. Mobile broadband via a 4G/3G modem is also supported for WAN backup by connecting to the USB port.

Professional Hardware Empowers the Wireless Future

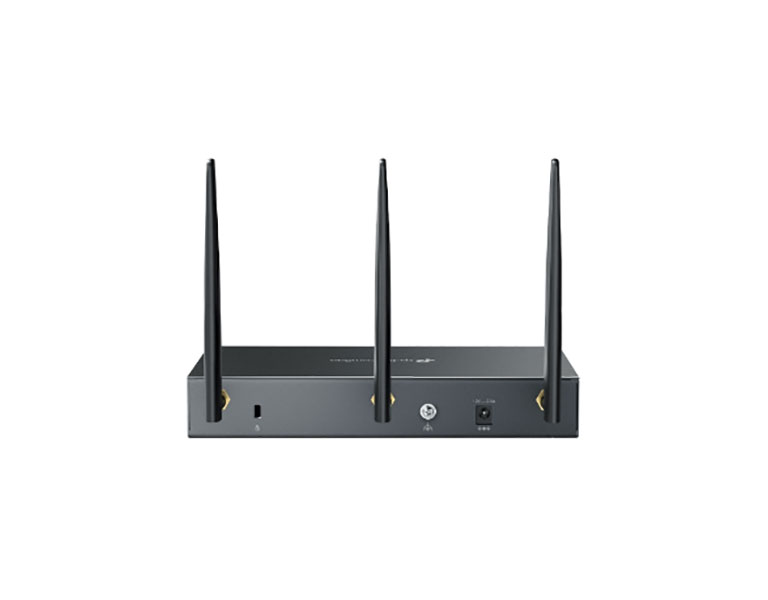

The triple external detachable antenna design grants ER706W excellent wireless coverage, reliable signal strength, and higher receiving sensitivity. It’s easier for users to adjust the quantity and angle of antennas to fit various network environments.
ER706W adopts steel material for higher thermal conductivity and heat dissipation, ensuring operation reliability.

Self-Organizing Network with Omada Access Points
ER706W is able to seamlessly connect to Omada access points that support mesh technology,^** ideal for large-scale environments. Intelligent self-organization optimizes the best path between ER706W and Omada Access Points while self-healing ensures you stay online even when one AP is disrupted

High-Security VPN
Pass-through traffic and a variety of VPN protocols, such as IPSec/SSL/Wireguard/PPTP/L2TP VPN, are available on ER706W, giving consumers versatile options. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment.^△ The router also features a built-in hardware engine to boost VPN performance.

Abundant Security Features

• Powerful Firewall
Advanced firewall policies protect your network and data

• Convenient VLAN Support
Create virtual network segments for enhanced security and simplified network management.

• DoS Defense
Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats.

• IP/MAC/URL Filtering
Forcefully prevent viruses and attacks from intruders.

• IP-MAC Binding
Reserves static IP assignment for clients to defend against ARP attacks and spoofing.

• One-Click ALG Activation
One-Click ALG Activation for applications such as FTP, H323, SIP, IPsec, and PPTP.

Omada SDN—The Smarter Cloud Solution for Business Networking
The path to the future of wireless begins with the Omada Software Defined Networking (SDN) solution. As the gateway that seamlessly integrates into the Omada SDN platform, ER706W allows for remote and centralized management, anywhere, anytime.

Easy Management with the Omada App
Users can configure ER706W in both the standalone and controller modes via the Omada app. Standalone management ensures max convenience. No need to set up additional controllers.

^*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and coverage are not guaranteed and will vary.
^**Omada Mesh Technology requires the use of EAPs that support mesh functionality. Please refer to https://www.tp-link.com/en/omada-mesh/product-list/ to confirm which Omada EAPs are compatible with Omada Mesh. Additionally, ER706W also supports standalone mesh. Please refer to https://www.tp-link.com/en/standalonemesh/product-list/ to confirm the specific models.
^‡Use of WiFi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, require clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band. It may be unavailable in some regions/countries due to regulatory restrictions.
^△For PPTP VPN and L2TP VPN, ER706W V1 can connect with up to 10 VPN servers. For OpenVPN, ER706W V 1 can connect withup to 5 VPN servers.
^†These functions are supported only in Standalone Mode.
^§These functions are supported only in Controller Mode.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	60 months

HARDWARE FEATURES
Standards and Protocols	IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q, TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP, 802.11a/b/g/n/ac/ax
Interface	1 Gigabit SFP WAN/LAN Port 1 Gigabit WAN port 4 Gigabit LAN/WAN ports
USB	1 USB3.0 (supports USB LTE dongle and USB Storage)
Wi-Fi Speed	2.4 GHz: 574 Mbps 5 GHz: 2402 Mbps HE160
Antennas	2.4 GHz: 2x 3 dBi dual-band detachable antennas 5 GHz: 3x 4.5 dBi dual-band detachable antennas
Network Media	10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Button	Reset button
Power Supply	12VDC / 2A Power Adapter
Flash	128 MB NAND
DRAM	512 MB DDR4
LED	SYS, WLAN, SFP, USB, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)
Max Power Consumption	EU: 16.8W (with USB 3.0 connected), 11.8W (without USB 3.0 connected)
Surge Protection	4 kV surge protection
Mounting	Desktop/ Wall-mounting
Dimensions ( W x D x H )	226 × 131 × 35 mm (Antenna dimensions not included)
SDN SUPPORT
Hardware Controller (OC200/OC300)	Automatic Device Discovery Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule Captive Portal Configuration
Software Controller
Omada App
PERFORMANCE¹
Concurrent Session	150,000
New Sessions / Second	5,100
Static IP NAT Throughput (Upload / Download)	937.2 Mbps / 936.1 Mbps
DHCP NAT Throughput (Upload / Download)	945.8 Mbps / 940.6 Mbps
PPPoE NAT Throughput (Upload / Download)	942.9 Mbps / 942.9 Mbps
L2TP NAT Throughput (Upload / Download)	837.4 Mbps / 881.5 Mbps
PPTP NAT Throughput (Upload / Download)	803.0 Mbps / 910.5 Mbps
66 Byte Packet forwarding rate (Upload / Download)	1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate (Upload / Download)	81274 pps / 91275 pps
IPSec VPN Throughput (AES256)	ESP-SHA1-AES256: 646.9Mbps ESP-SHA256-AES256: 642.8Mbps ESP-SHA384-AES256: 648.9Mbps ESP-SHA512-AES256: 658.4 Mbps
GRE	Unencrypted: 624.2Mbps Encrypted: 301.5Mbps
WireGuard VPN	393.5Mbps
SSL VPN	126.7Mbps
OpenVPN	129.3Mbps
L2TP VPN Throughput	Unencrypted: 1034.0 Mbps Encrypted: 570.0 Mbps
PPTP VPN Throughput	Unencrypted: 1165.0 Mbps Encrypted: 209.0 Mbps
BASIC FUNCTIONS
WAN Connection Type	Static IP Dynamic IP PPPoE (supports MRU Configuration) PPTP L2TP
DHCP	DHCP Server DHCPv6 PD Server (only in Standalone Mode) DHCP Options Customization DHCP Address Reservation Multi-IP Interfaces Multi-Net DHCP
MAC Clone	Modify WAN Address
IPTV	IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
IPv6	StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / NonAddress mode
Stateful ACL	Yes
mDNS Repeater	Yes
Quality of Service	Yes
Bridge VLAN	Yes
VLAN	802.1Q VLAN
1. Rated specifications are based on test results using software version 1.0.0 Build 20230712 Rel.61639. Device performance may vary as a result of the actual scenario.
TRANSMISSION
Load Balance	Intelligent Load Balance Application Optimized Routing Link Backup (Timing, Failover) Online Detection
NAT	One-to-One NAT Multi-Net NAT Port Forwarding Port Triggering¹ NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG UPnP
Routing	Static Routing Policy Routing RIP² OSPF²
Session Limit	IP-based Session Limit
Bandwidth Control	IP-based Bandwidth Control
Wireless Function
Wireless Encryption	WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
Multiple SSIDs	16 in total (8 per radio)
Enable/Disable Wireless Radio	Yes
Enable/Disable SSID Broadcast	Yes
Guest Network	Yes
Automatic Channel Selection Algorithm	Yes
Transmit Power Control	Adjust transmit Power on dBm
Seamless Roaming	Yes
Mesh	Yes
OFDMA	Yes
Beamforming	Yes
MU-MIMO	Yes
Rate Limit	Yes
Load Balance	Yes
Airtime Fairness	Yes
Band Steering	Yes
RADIUS Accounting	Yes
MAC Authentication	Yes
Reboot Schedule	Yes
Wireless Schedule	Yes
Support Data Rates	802.11ax: 8 Mbps to 2402 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80/160) 802.11ac: 6.5 Mbps to 2166.7 Mbps (MCS0-MCS11, NSS = 1 to 2 VHT20/40/80/160) 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40) 802.11g: 6, 9, 12, 18, 24, 36, 48 ,54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps 802.11a: 6, 9, 12, 18, 24, 36, 48 ,54 Mbps
VPN
IPSec VPN	100 IPSec VPN Tunnels LAN-to-LAN, Client-to-LAN Main, Aggressive Negotiation Mode DES, 3DES, AES128, AES192, AES256 Encryption Algorithm IPsec Failover IKE v1/v2 MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm NAT Traversal (NAT-T) Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS)
PPTP VPN	PPTP VPN Server PPTP VPN Client (10)³ 50 Tunnels PPTP with MPPE Encryption
L2TP VPN	L2TP VPN Server L2TP VPN Client (10)³ 50 Tunnels L2TP over IPSec
GRE	Only in Standalone Mode
WireGuard VPN	Yes
SSL VPN	50 Tunnels
OpenVPN	OpenVPN Server OpenVPN Client (5)³ 55 OpenVPN Tunnels "Certificate + Account" Mode Full Mode
1. Port Triggering is supported only in Standalone Mode. 2. RIP and OSPF are supported only in Standalone Mode. 3. For PPTP VPN and L2TP VPN, ER706W can connect with up to 10 VPN servers. For OpenVPN, ER706W can connect with up to 5 VPN servers
SECURITY
Attack Defense	TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN
Filtering	Web Group Filtering¹ URL Filtering Web Security¹
DNS Proxy	DNSSEC, DoH, and DoT
ARP Inspection	Sending GARP Packets ARP Scanning² IP-MAC Binding
Access Control	Source/Destination IP Based Access Control
AUTHENTICATION
Web Authentication	No Authentication Simple Password³ Hotspot (Local User / Voucher³ / SMS³ / Radius³ ) External Radius Server External Portal Server³ LDAP
MANAGEMENT
Maintenance	Web Management Interface Remote Management Export & Import Configuration SNMP v1/v2c/v3 Diagnostics (Ping & Traceroute)⁴ NTP Synchronize⁴ Port Mirroring CLI (only in Standalone Mode) Syslog Support
Service	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
OTHERS
Certification	CE, FCC, RoHS
Package Contents	ER706W Power Adapter Quick Installation Guide
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 MAC OS, NetWare, UNIX or Linux
Environment	Operating Temperature: 0 °C to 40 °C Storage Temperature: -40 °C to 70 °C Operating Humidity: 10% to 90% non-condensing Storage Humidity: 5% to 90% non-condensing
1. Web Group Filtering and Web Security are supported only in Standalone Mode. 2. ARP Scanning is supported only in Standalone Mode. 3. The following web authentication methods are supported only in Controller Mode: Simple Password, Voucher, SMS, Radius, and External Portal Server. 4. Diagnostics (Ping & Traceroute) and NTP Synchronize are supported only in Standalone Mode.
