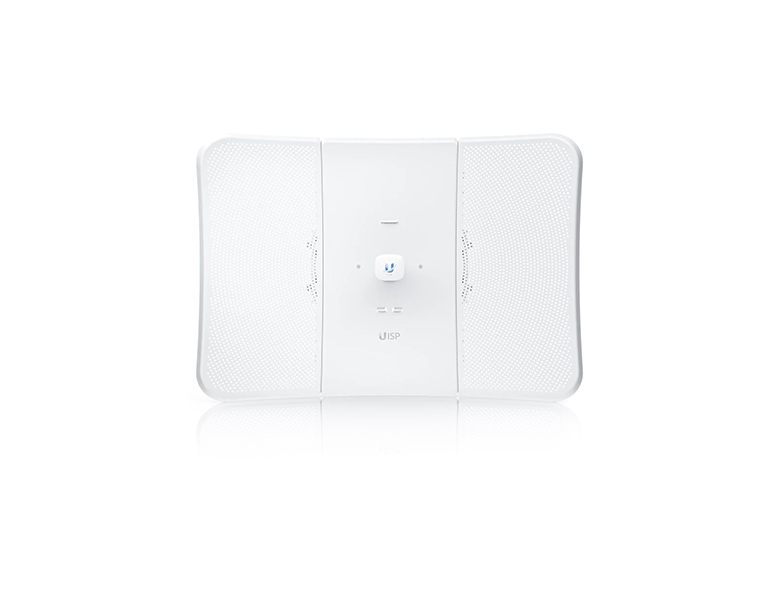

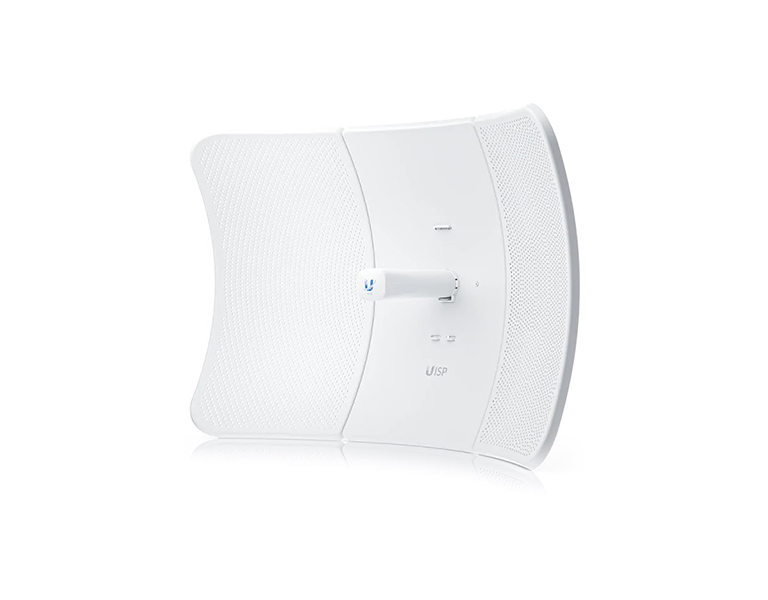

The LTU XR is a high-performance, cost-effective PtMP CPE for wireless ISPs that can reach up to a 550 Mbps throughput rate. The LTU XR also facilitates independent transmission and receives channel frequency configurations anywhere within its radio band to avoid local interference and ensure superior client performance. Additionally, the LTU XR is equipped with a Bluetooth management radio so it's easy to set up and configure with the UISP Mobile app.
Features:
• Proprietary Ubiquiti LTU core processor
• Long-range, 29 dBi antenna with InnerFeed technology
• High data and performance rate (1024 QAM)
• Link range up to 35 km
• Channel width flexibility (10/20/30/40/50 MHz bandwidth)
• Central configuration management from the AP side
• Frequency splitting
• Router mode support
• Integrated GPS
• Link planning support via ISP Design Center
• Quick, Bluetooth-powered setup with the UISP Mobile app
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for outdoor use. |
Warranties - Returns: | |
Money Return: | Repair - Replacement: |
20 days | 24 months |
Mechanical | |
Dimensions | 747 x 525 x 347 mm |
Weight | 3.2 kg |
Enclosure materials | Aluminum alloy, UV stabilized polycarbonate |
Mount material | UV stabilized polycarbonate |

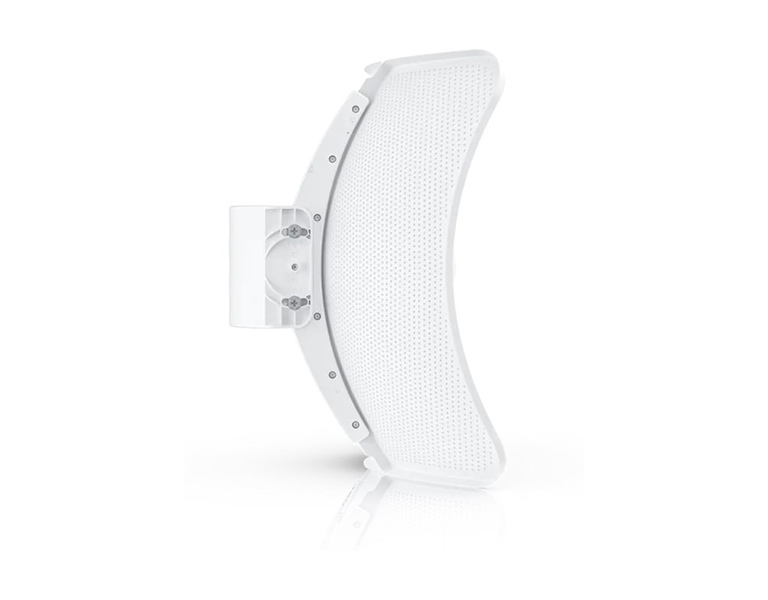

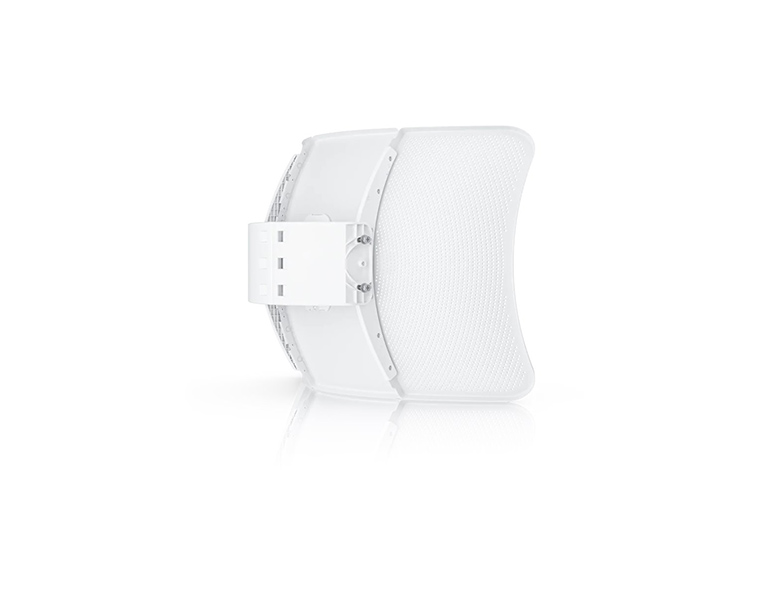

Mount | Integrated pole mount(included) Pole compatibility: Ø35-60 mm |
Wind loading | 1100 N at 200 km/h |
Weatherproong | IPX6 |
Hardware | |
Networking interfaces | (1) GbE RJ45 port |
Button | Factory reset |
LEDs | Power/ethernet |
RF connections | Internal |
Max. power consumption | 8.5W |
Power method | Passive PoE 2-pair (4, 5+; 7, 8-) |
Power supply | 24V DC, 0.5A Gigabit PoE adapter (included) |
Operating Humidity | 5 to 95% Noncondensing |
Supported voltage range | 22 to 26VDC |
Operating temperature | -40 to 55° C |
Operating humidity | 5 to 95% non-condensing |
Certications | FCC, IC, CE |
System | |
Maximum throughput | 900+ Mbps* *FW version 2.3.0 and later. |
Encryption | WPA2-PSK (AES) |
Uplink/downlink ratio | 25/75, 33/67, 50/50 |
Software | |
OS | airOS |
Modes | PtMP CPE only |
Services | SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog |
Utilities | airView, speed test, alignment, discovery, ping, traceroute, cable test, constellation |
Auto distance adjustment | Yes |
Auto power adjustment | Yes |
Network | Router mode |
Security | Yes |
Statical reporting | Yes |
Managementinterface | Bluetooth managementfor easy setup over UISP App WEB UI |
Minimum software requirements | Modern Web browser or Android/iOS smartphone |
RF | |
Operating frequency* | 5.15 to 5.95 GHz *Depends on regulatory region |
Max. conducted TX power | 22 dBm per Chain |
Channel bandwidth | 10/20/30/40/50 MHz |
Antenna Gain | 29 dBi |
Isolation | 20 dB |
Beamwidth | HPOL: 3 dB: 5.5°, 6 dB: 7.5° VPOL: 3 dB: 5.5°, 6 dB: 7.5° Elevation: 3 dB: 5.5°, 6 dB: 7.5° |
Electrical downtilt | 0° |
