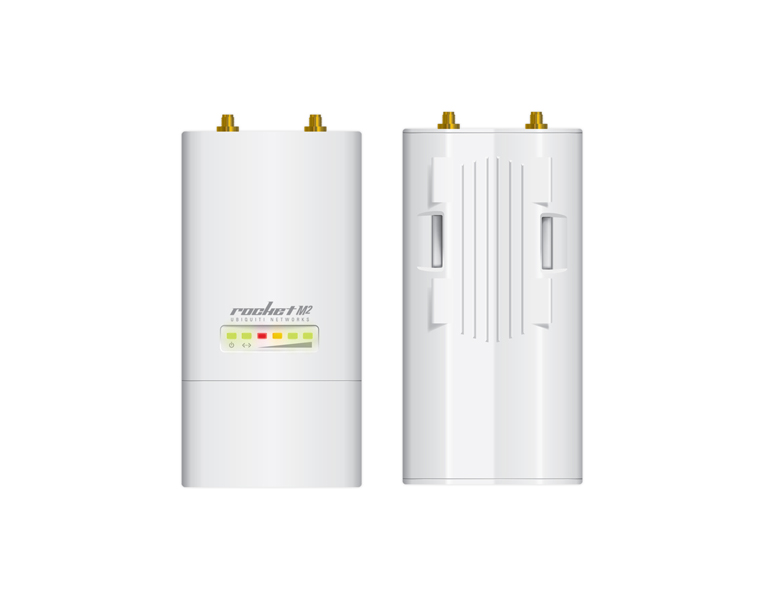

RocketM2
The Rocket enclosure is built to survive harsh environments and fits the Rocket mount built into every airMAX antenna. Pair the Rocket with the appropriate antenna for your PtP link or PtMP network.
Overview
Featuring mix-and-match industrial design, the Rocket™ is a Ubiquiti Networks® airMAX® BaseStation that supports speeds of up to 150+ Mbps real TCP/IP throughput. It is ideal for deployment in Point-to-Point (PtP) bridging or Point-to-MultiPoint (PtMP) airMAX applications.
Flexibility
The Rocket is available in several frequency models: 900 MHz, 2.4 GHz, 3/3.65 GHz, and 5 GHz, to support your specific application. You have the freedom to locate, deploy, and operate the Rocket in these unlicensed bands (subject to local country regulations).
The Rocket allows for a high degree of flexibility in configuring channel bandwidths: 2, 3, 5, 8, 10, 20, 25, 30, and/or 40 MHz, depending on the specific product model and local country regulations.
Plug and Play
Integration Rocket radios and airMAX antennas have been designed to seamlessly work together. Every airMAX Sector, RocketDish™, Omni, or Yagi antenna has a built-in Rocket mount, so installation requires no special tools. Snap the Rocket securely into place and mount the antenna then you have the optimal combination of Rocket radio and airMAX antenna for your PtP or PtMP application.
airMAX Technology Included
Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.
This time slot method eliminates hidden node collisions and maximizes airtime efficiency. It provides many magnitudes of performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class.
Intelligent QoS
Priority is given to voice/video for seamless streaming.
Scalability
High capacity and scalability.
Long Distance
Capable of high-speed, carrier-class links.
Software
airOS
Built upon an intuitive user interface foundation, airOS® 5 is an advanced operating system for Ubiquiti airMAX M Series products.
• airMAX Protocol Support
• Long-Range PtP Link Mode
• Transmit Power Control: Automatic/Manual
• Automatic Distance Selection (ACK Timing)
• Device Statistics
• Diagnostic Tools
airView
Integrated on all Ubiquiti M products, airView® provides advanced spectrum analyzer functionality: waterfall, waveform, and real-time spectral views allow operators to identify noise signatures and plan their networks to minimize noise interference.
• Waterfall Aggregate energy over time for each frequency.
• Waveform Aggregate energy collected.
• Real-time Energy is shown in real time as a function of frequency.
• Recording Automate airView to record and report results.
airControl
airControl® is a powerful and intuitive, web-based server network management application, which allows operators to centrally manage entire networks of Ubiquiti devices.
• Network Map
• Monitor Device Status
• Mass Firmware Upgrade
• Web UI Access
• Manage Groups of Devices
• Task Scheduling
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for outdoor use. |
Warranties - Returns: | |
Money Return: | Repair - Replacement: |
20 days | 24 months |
Specifications | |
Dimensions | 160 x 80 x 30 mm |
Weight | 500 g |
Enclosure Characteristics | Outdoor UV Stabilized Plastic |
Processor | MIPS 24Kc |
Memory | 128 MB SDRAM 8 MB Flash |

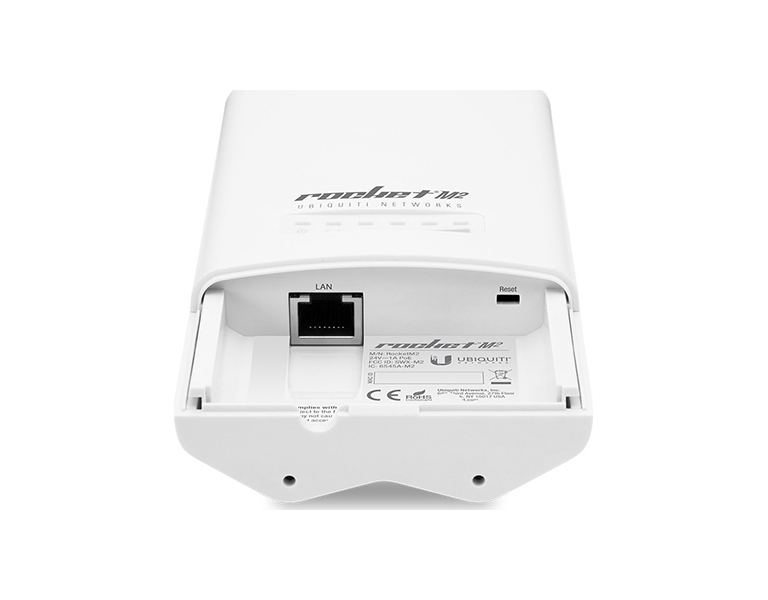

Networking Interface | (1) 10/100 Mbps |
RF Connections | (2) RP-SMA (Waterproof) |
LEDs | Power, Ethernet, (4) Signal Strength |
Max. Power Consumption | 6.5W |
Power Supply | 24V, 1A PoE Adapter |
Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
ESD/EMP Protection | ± 24KV Air / Contact |
Operating Frequency | 2402 - 2462 MHz |
Operating Temperature | -30 to 75° C (-22 to 167° F) |
Operating Humidity | 5 to 95% Noncondensing |
Shock and Vibration | ETSI300-019-1.4 |
Wireless Approvals | FCC, IC, CE |
RoHS Compliance | Yes |
Modes | Access Point, Station |
Services | Web Server, SNMP SSH Server, Telnet Ping Watchdog DHCP, NAT, Bridging, Routing |
Utilities | Antenna Alignment Tool Discovery Utility Site Survey Ping, Traceroute Speed Test |
Distance Adjustment | Dynamic Ack and Ackless Mode |
Power Adjustment | Software Adjustable UI or CL |
Security | WPA2 AES Only |
QoS | Supports Packet Level Classification WMM and User Customer Level: High/Medium/Low |
Statistical Reporting | Up Time Packet Errors Data Rates Wireless Distance Ethernet Link Rate |
Other | Remote Reset Support Software Enabled/Disabled VLAN Support, 64QAM 5/8/10/20/30/40 MHz Channel Width Support |
Ubiquiti Specific Features | airMAX Mode Traffic Shaping with Burst Support Discovery Protocol Frequency Band Offset Ackless Mode |
