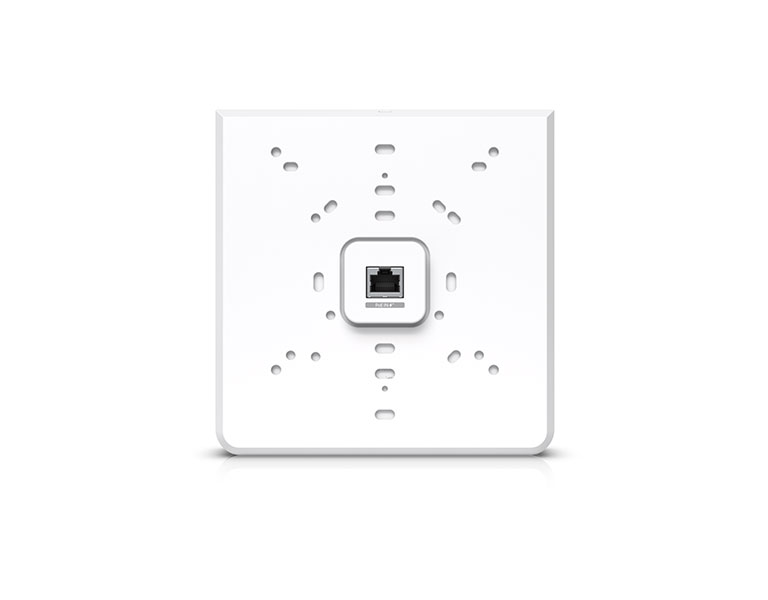

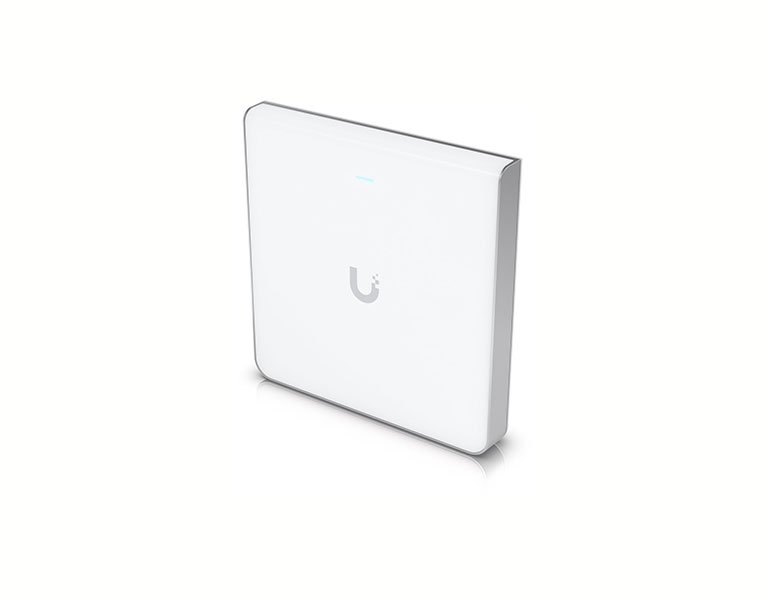

U6 Enterprise In-Wall is an access point designed for use in office spaces with high coverage density. The universal wall mounting bracket is ready for use with most commonly used wiring boxes worldwide.

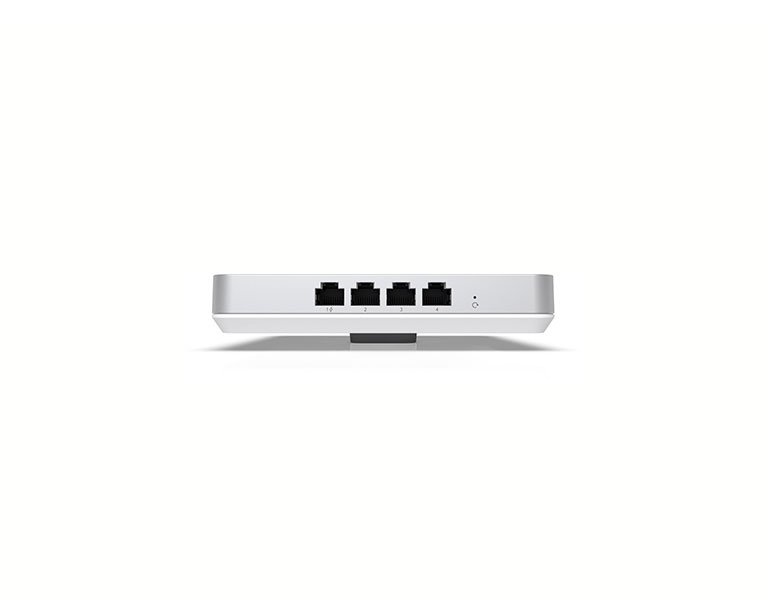

The 1G/2.5 Gbps input port on the back supports 802.3at/bt power supply with a voltage range of 44-57V. On the bottom, it is possible to use a total of 4 ports with a speed of 10/100/1000Mbps, one of the ports offers PoE-out option.
Wireless transmission is handled by a modern radio part with WiFi 4/5/6/6E standards support and WPA / WPA2 / WPA3 encryption . The maximum transmission speed is 300Mbps for 2.4GHz, 4.8Gbps for 5GHz and 4.8Gbps for 6GHz.

Features:
• 1,250 ft² coverage
• 600+ connected devices
• WiFi6E (4x4 MIMO)
• Powered using PoE+/PoE++*
• (4) GbE ports with (1) PoE output
• 2.5GbE uplink
*PoE++ required for the use of PoE output.

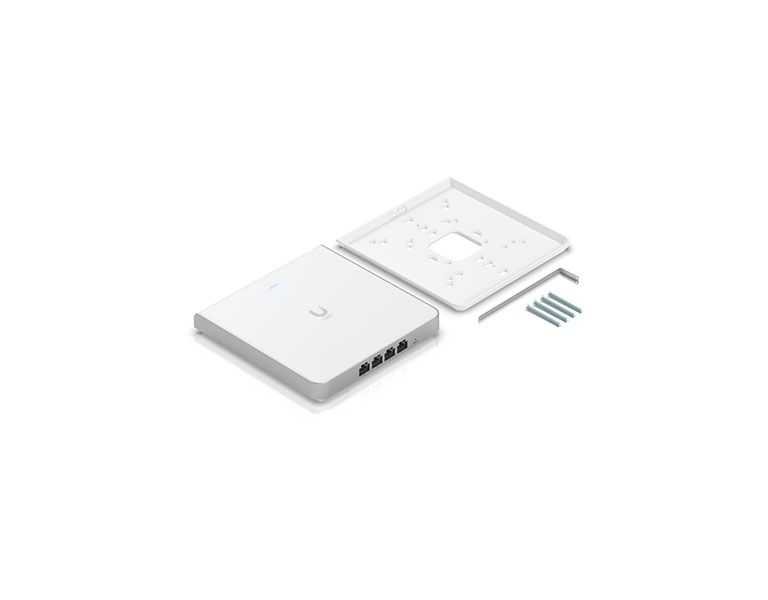

Package contents:
• Device
• Wall mount
• Screws

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5945 – 6425 MHz defined in this document, Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for indoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	24 months

Mechanical

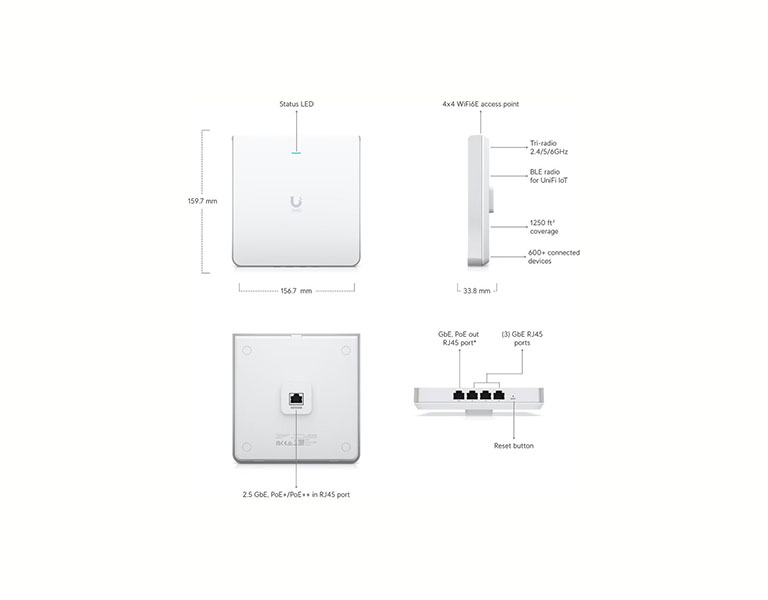

Dimensions	159.7 x 156.7 x 33.8 mm
Weight	884 g
Enclosure materials	Polycarbonate, aluminium
Mount material	Aluminum
Hardware
Networking interface	(1) 2.5GbE RJ45 port(Data in) (4) GbE RJ45 ports (Data out)
Management interface	Ethernet Bluetooth
PoE interface	(1) PoE+ in (1) PoE out
Power method	PoE+ PoE++ (Required for PoE output)
Power supply	UniFi PoE switch
Max. power consumption	21W (Excluding PoE output)
Max. PoE wattage per port by PSE	15.4W *Requires aPoE++switch.
Supported voltage range	44—57V DC
Max. TX power	2.4 GHz: 22 dBm 5-7 GHz: 26 dBm
MIMO	2.4 GHz: 2 x 2 (UL MU-MIMO) 5 GHz: 4 x 4 (DL/UL MU-MIMO) 6 GHz: 4 x 4 (DL/UL MU-MIMO)
Throughput rate	2.4 GHz: 573.5 Mbps 5 GHz: 4.8 Gbps 6 GHz: 4.8 Gbps
Antenna gain	2.4 GHz: 4 dBi 5 GHz: 5.8 dBi 6 GHz: 5.8 dBi
LEDs	White/blue
Buttons	Factory reset
Operating temperature	-30 to 60° C
Operating humidity	5 to 95% noncondensing
Certications	CE, FCC, IC
Software
WiFi standards	802.11a/b/g WiFi 4/WiFi 5/WiFi 6/WiFi 6E
Wireless security protocols	WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID	8 per radio
VLAN	802.1Q
Advanced QoS	Per-user rate limiting
Guesttrafc isolation	Supported
Concurrent client support	600+
Zero-wait DFS	Yes
Supported Data Rates
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4)	6.5 Mbps to 600 Mbps (MCS0 - MCS31 , HT 20/40)
802.11ac (WiFi 5)	6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6/6E)	7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
