• 5 GHz backup radio
• Supported stations and distances:
– Wave AP - 8 km link range
— Wave AP Micro - 6 km link range
• WAN Ports: (1) 10G SFP+, (1) 2.5GbE
• Integrated GPS antenna
• Link planning support via the ISP Design Center

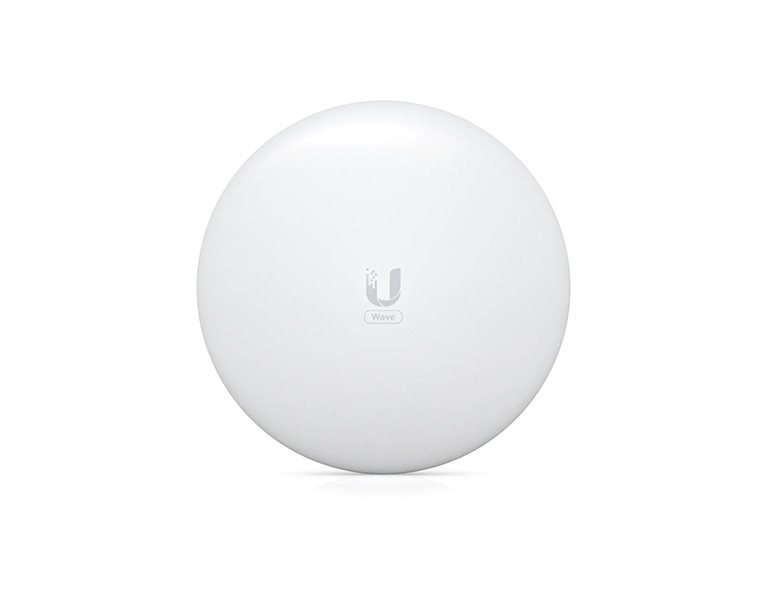

60 GHz PtMP access point powered by Wave Technology.

The Wave Access Point can connect up to 15 stations and deliver up to 5.4 Gbps total throughput (2.7 Gbps duplex). It is equipped with a high-performance 5 GHz backup radio to ensure uninterrupted connection, as well as a Bluetooth radio to simplify setup in the UISP® Mobile app.

Caution! According to current Greek Legislation, the use of devices that transmit in the frequency band 57.000 – 71.000 MHz, must be in accordance with the following: Regulation of Use of Radio Spectrum.
EU executive decision.
Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	24 months

Mechanical
Dimensions	Ø424.4 x 166.2 mm
Weight	Without mount: 2.59 kg With mount: 3.79 kg
Enclosure materials	UV stabilized plastic
Mount material	Galvanized steel
Pole mount diameter	25 to 76.2 mm (1 to 3") on pipe outer diameter
Wind loading	286 N at 200 km/h
Weatherproong	IPX6
Hardware
Processor	Dual ARM® Cortex ® -A53 cores at 1GHz
Memory	DDR3L 512MB
Networking interface	(1) GbE RJ45 port
Max. power consumption	18W
Power method	48VDC passive PoE 4-pairs (1, 2+; 3, 6-) (4,5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-) 24VDC passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Power supply	48VDC, 0.65A gigabit PoE adapter (included) Can be powered by a UISP Router or UISP Switch
Button	Factory reset
LEDs	Power, Ethernet, GPS, Link
Operating temperature	-40 to 60° C
Operating humidity	5 to 95% noncondensing
Certications	FCC, IC, CE
Software
OS	airOS ®
Operating mode	PtMP station
Ubiquiti specic features	Integrated 60 GHz radio, discovery protocol, Wave technology
Services	UISP, ping watchdog, NTP client, SNMP
Tools	Antenna alignment, discovery utility, ping, trace route, speed test
Network	Bridge/Router mode
Software management	Bluetooth managementfor easy setup over UISP app WEB UI
Minimum software requirements	Any modern web browser/iOS or Android based smartphone
System
Total throughput	2 Gbps (1 Gbps duplex)
Maximum range	8 km
Encryption	WPA2-PSK (AES)
RF
Operating frequency*	57 to 71 GHz *Depends onregulatory region
GPS	Yes
Channel bandwidth	2160, 1080 MHz
Operating channels*	58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz *Depends onregulatory region
Modulation	16QAM, QPSK
Antenna gain	46 dBi
Azimuth and elevation beamwidth	3 dB: 0.8° 6 dB: 1.1°
Back-Up RF
WiFi standard	802.11ax (WiFi 6)
Operating frequency*	US/CA U-NII-1 5150 - 5250 MHz U-NII-3 5725 - 5850 MHz Worldwide 5150 - 5875 MHz *Depends onregulatory region
Channel bandwidth	20, 40, 80 MHz
Modulation	BPSK (½) QPSK (½), QPSK (¾) 16QAM (½), 16QAM (¾) 64QAM (2⁄3), 64QAM (¾), 64QAM (5⁄6) 256QAM (¾), 256QAM (5⁄6) 1024QAM (¾), 1024QAM (5⁄6)
Antenna gain	22 dBi
Polarization	Dual-linear
Cross-pol isolation	20 dB
Azimuth and elevation beamwidth	3 dB: 8 to 10°
LEDs
Power	Flashing White: Bootup in progress White: Not connected to UISP application Blue: Connected to UISP application Flashing Blue: Locate in progress Blue/White: Fimware upgrade in progress
Ethernet	Flashing Blue: Ethernet traffic detected
GPS	Blue: Receiving atleast (4) GPS satellite signal
Links	White: 5GHz link Blue: 60GHz link
