MikroTik C52iG-5HaxD2HaxD-TC, hAP ax² Wi-Fi 6, RouterOS L4

Product Code:
C52iG-5HaxD2HaxD-TC
Manufacturer Mikrotik
Sales price: 110,00 €(Includes 24% VAT)
Sales price without TAX:88,71 €
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews

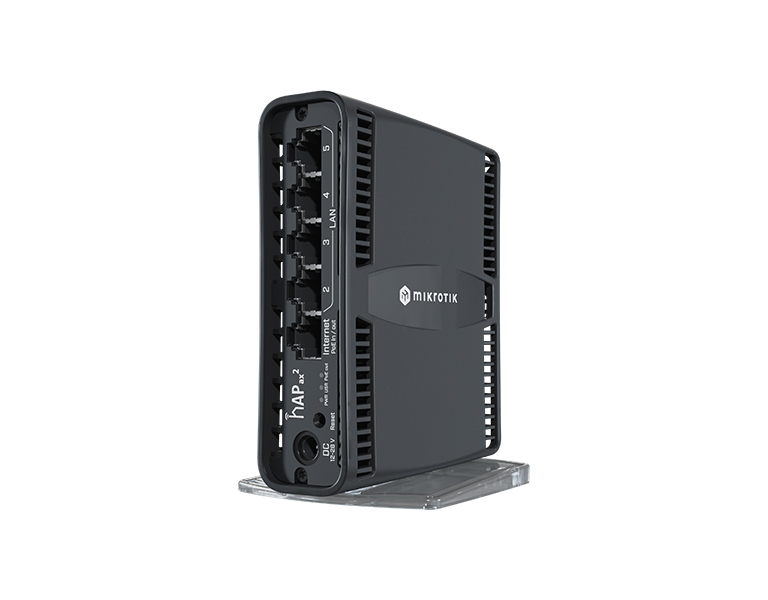

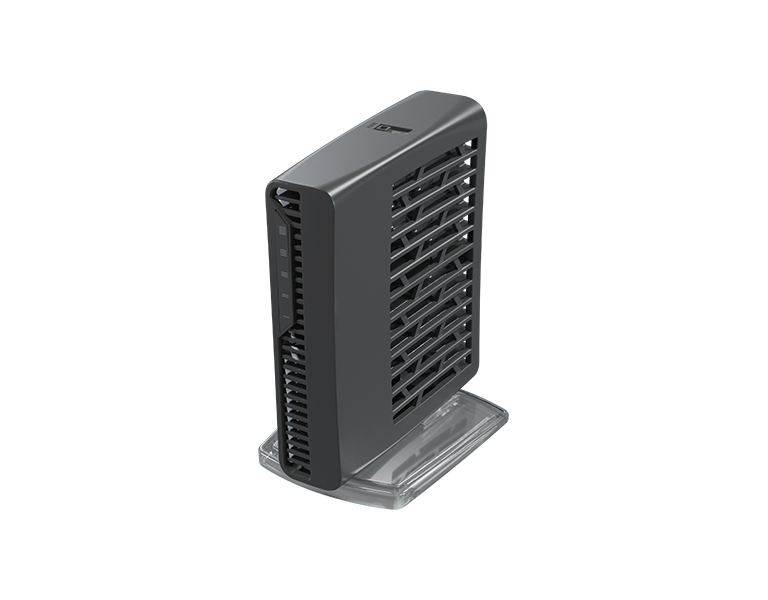

MikroTik C52iG-5HaxD2HaxD-TC, hAP ax² Wi-Fi 6, RouterOS L4




hAP ax² has everything you might need in a primary home access point – and more! Forget endless reviews and comparisons – this is the perfect device for 99% of homes. Wireless signal is now stronger than ever. Here are the two main ingredients of hAP ax’s success: a state-of-the-art dual-band, dual-chain 4-4.5 dBi radio, and the 802.11ax standard with Wave2 support. Let’s compare it to the previous generation: depending on your overall setup, that means up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum! The modern quad-core CPU running at 864 MHz combined with a solid GB of RAM packs a hefty punch when it comes to heavy operations like complex firewall rules, IPsec hardware encryption, using more threads or experimenting with the most advanced RouterOS features. And with the addition of WPA3 advanced encryption support, you’re safer than ever before. Like the previous models, hAP ax² can be mounted vertically, horizontally, or even on the wall – without sacrificing the strong signal. With so many products and features on the market, even an experienced user can become confused. So it’s time for a simple truth for a simple choice: you can’t go wrong with a hAP ax² in most homes.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.



Warranties - Returns:
Money Return: Repair - Replacement:
20 days 12 months





Specifications
Product code C52iG-5HaxD2HaxD-TC
CPU Architecture ARM 64bit
CPU Quad-Core IPQ-6010 864 MHz
Size of RAM 1 GB
Storage 128 MB, NAND
MTBF Approximately 100'000 hours at 25C
IPsec hardware acceleration Yes
Number of 1G Ethernet ports 5
Number of 1G Ethernet ports with PoE-out 1
Switch chip model IPQ-6010
Wireless interface model QCN-5052 (2.4 GHz), QCN-5052 (5 GHz)
Wireless 2.4 GHz 802.11ax dual-chain, 5 GHz 802.11 802.11ax dual-chain
Wireless antenna max gain 2.4 GHz (4.5 dBi), 5 GHz (4 dBi)
Dimensions 120 x 101 x 37 mm
Operating system RouterOS, License level 4
Operating temperature -40°C to +50°C
MTBF Approximately 100'000 hours at 25C
IPsec hardware acceleration Yes
Powering
Number of DC inputs 2 (PoE-in, DC jack)
PoE-in input Voltage 18-28 V
DC jack input Voltage 12-28 V
PoE-out Passive PoE Ether1, max out per port output (input < 30 V): 600mA
Max total out 0.6 A
Total output power 16.8 W
Power adapter nominal voltage 24 V
Power adapter nominal current 1.2 A
Max power consumption (without attachments) 12 W
Max power consumption 27 W
Wireless capabilities
Wireless 2.4 GHz Max data rate 574 Mbits/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz 4
Wireless 2.4 GHz chip model QCN-5022
Wireless 2.4 GHz generation Wi-Fi 6
Wireless 5 GHz Max data rate 1200 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac/ax
Antenna gain dBi for 5 GHz 4.5
Wireless 5 GHz chip model QCN-5052
Wireless 5 GHz generation Wi-Fi 6
WiFi speed AX1800
Included parts • 24 V 1.2 A power supply (straight           plug)
• hAP case base
• K-47 wall mount set



Wireless specifications
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 27 -100
11MBit/s 27 -94
6MBit/s 27 -96
54MBit/s 25 -80
MCS0 27 -96
MCS7 24 -75
MCS9 22 -70
MCS11 20 -67

5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 26 -96
54MBit/s 23 -80
MCS0 26 -96
MCS7 22 -75
MCS9 20 -70
MCS11 18 -67
