Ubiquiti AFi-ALN AmpliFi Alien Router and MeshPoint
Product Code:
AFI-ALN
Manufacturer Ubiquiti
Sales price:
540,00 €(Includes 24% VAT)
Sales price without TAX:435,48 €
Product Availability:
Show Shipping Cost:
- Description
- Specifications
- Downloads
- Reviews

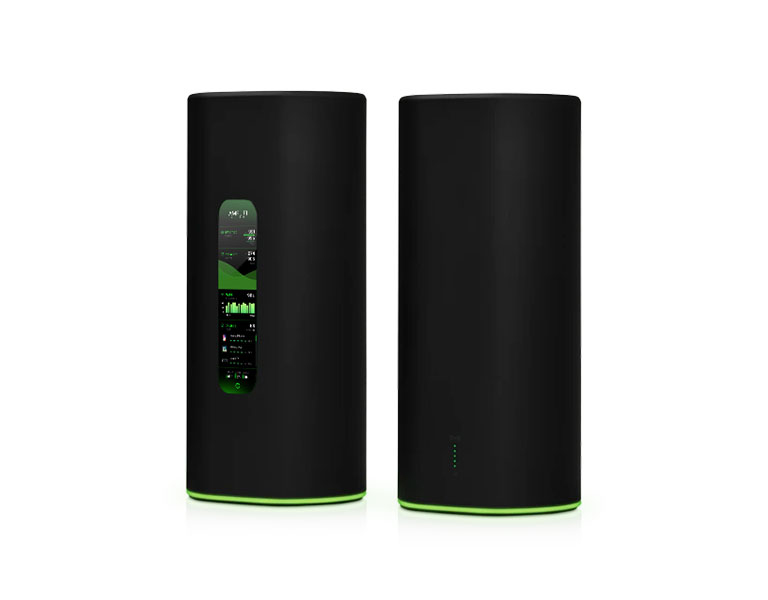

Ubiquiti AFi-ALN AmpliFi Alien Router and MeshPoint

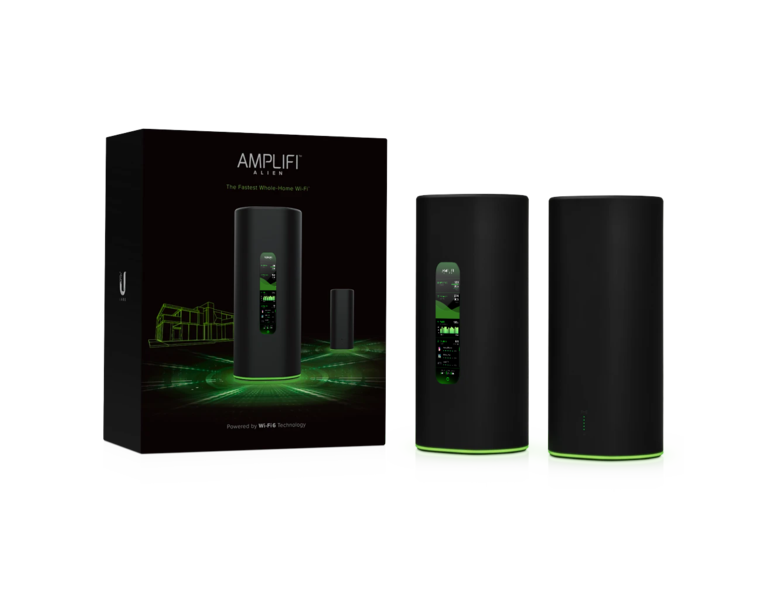

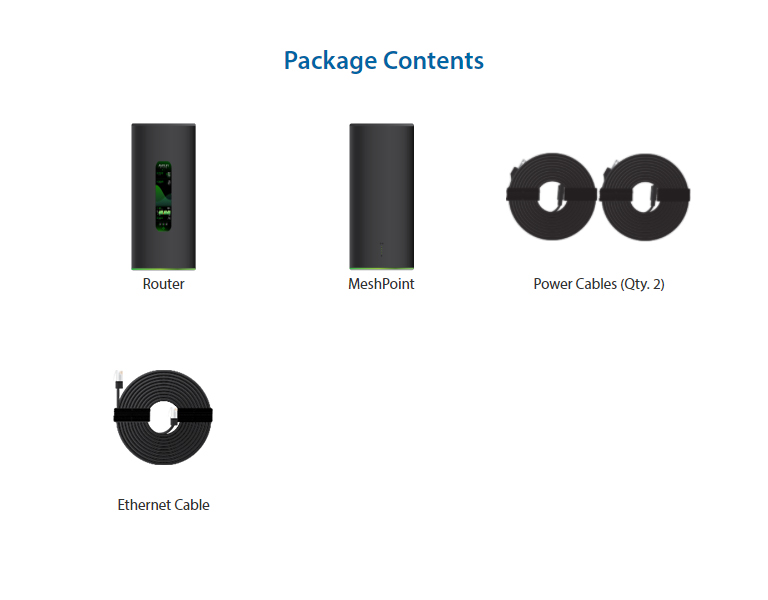

With the latest 802.11ax Wi-Fi 6 technology, AmpliFi Alien delivers 4x the overall network capacity and 2x the coverage while reaching true gigabit speeds. It features a dual-band radio with 2.4 GHz and 5 GHz 802.11ax radios optimized for Wi-Fi 6 performance and backward compatibility with previous Wi-Fi standards. This combination pack comprises one AmpliFi Alien Router and one Amplifi Alien MeshPoint. The MeshPoint expands wireless range coverage and includes a Gigabit Ethernet port to extend wired connectivity.
Features:
• Wi-Fi 6 performance
• 5 GHz 8x8 Wi-Fi 6 radio (Max. aggregate speed: 4804 Mbps)
• 2.4 GHz 4x4 Wi-Fi 6 radio (Max. aggregate speed: 1148 Mbps)

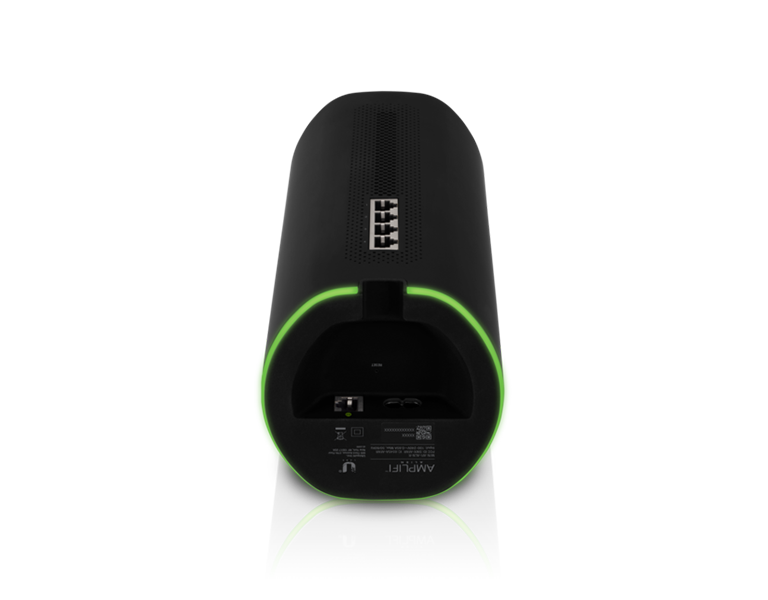

• Router with 4-Port Gigabit Ethernet switch

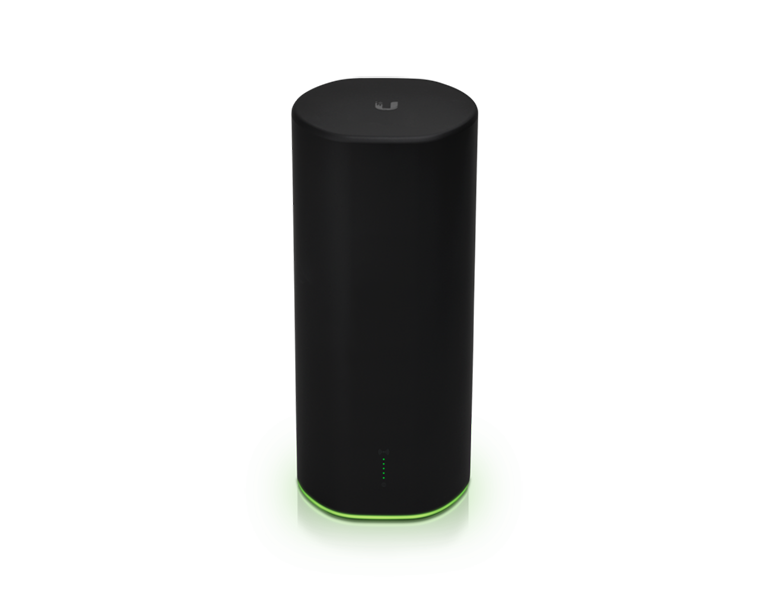

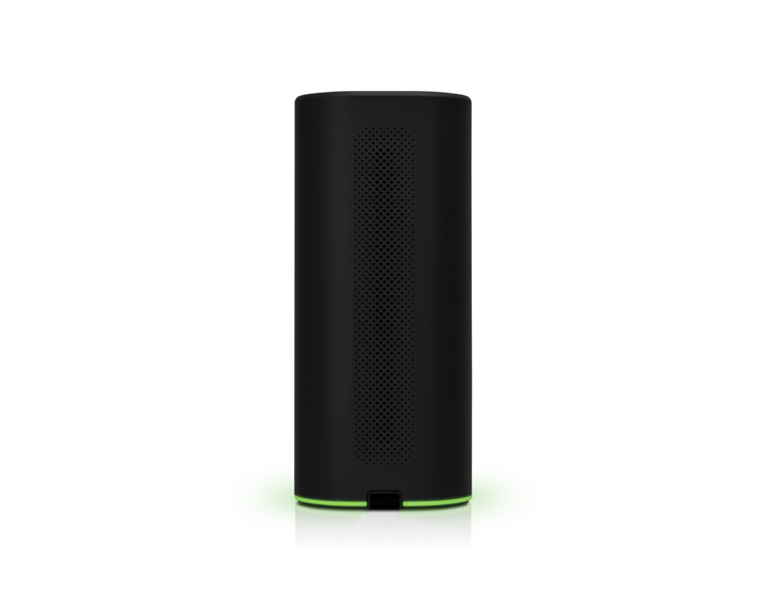

• MeshPoint with (1) Gigabit Ethernet port

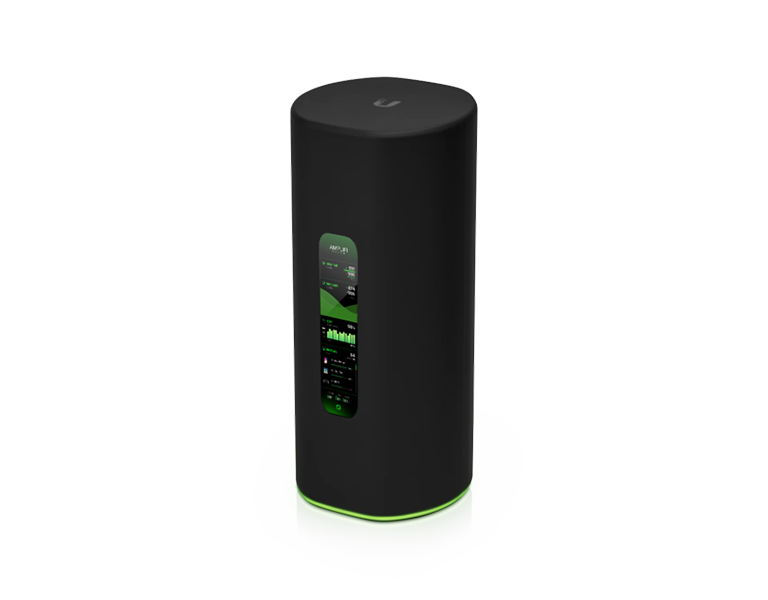

• Touchscreen display on Router
• Includes AmpliFi Teleport configuration-free VPN solution
| Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for indoor use. |
|
| Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for indoor use. |
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 24 months |
| Specifications | |
| Mechanical | |
| Dimensions | Router/MeshPoint: 110 x 110 x 250 mm |
| Weight | Router: 1.2 kg MeshPoint: 1.09 kg |
| Enclosure Material | Router/MeshPoint: Polycarbonate |
| Hardware | |
| Processor | Router/MeshPoint: Quad-Core Cortex A53 at 2.2 GHz |
| Memory Information | Router/MeshPoint: 1 GB |
| Management Interface | AmpliFi Wi-Fi App |

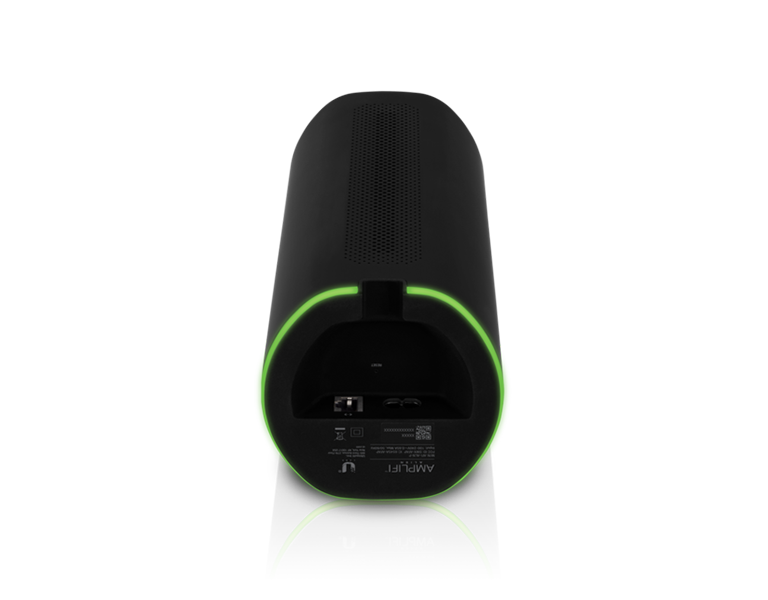

| Networking Interface | Router: (1) 10/100/1000 Mbps RJ45 Ethernet WAN (4) 10/100/1000 Mbps RJ45 Ethernet LAN MeshPoint: (1) 10/100/1000 Mbps RJ45 Ethernet LAN |
| Max. Power Consumption | Router: 35W MeshPoint: 34W |
| ESD/EMP Protection | Router/MeshPoint: Air/Contact: ± 24kV |
| Power Method | Router/MeshPoint: Universal AC Input: 100-240VAC, 1A Max., 50/60 Hz |
| Button | Router/MeshPoint: Factory Reset |

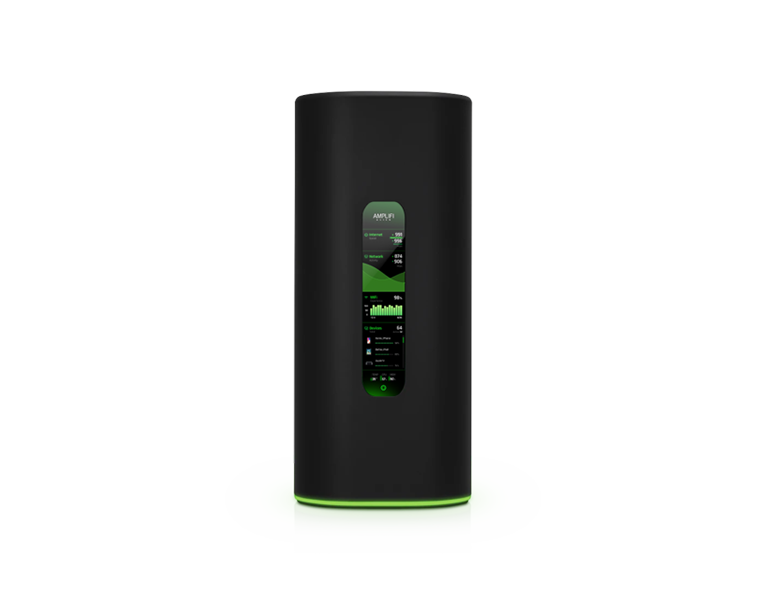

| Display | Router: 4.7" Diagonal, 274 x 1268, 279 ppi, G+F Touch, Full Color MeshPoint: No Display |
| Antenna | Router/MeshPoint: Internal Dual-Band Metal Stamp with 12 Polarity |
| Antenna Gain | 2.4 GHz: 3 dBi, 5 GHz: 6 dBi |
| Max. TX Power | 2.4 GHz: 20 dBm, 5 GHz: 36 dBm |
| MIMO | 2.4 GHz: 4 x 4, 5 GHz: 8 x 8 |
| Speeds | 2.4 GHz: 1148 Mbps, 5 GHz: 4800 Mbps |
| LEDs | Router/MeshPoint: Green Ring MeshPoint: Green Status Indicator Flashing: Initial Conguration Lights up in Sequence Bottom to Top: Bootup in Progress Lights Up in Sequence from the Middle Outwards: Wi-Fi Not Ready or Connected Steady: Device is Adopted (Lit based On the Signal Strength Receiving from the Router) Flash Quickly: Locate Lights Up One by One: Firmware Upgrading |
| Operating Temperature (Ambient) | Router/MeshPoint: -10 to 45°C (14 to 113°F) |
| Operating Humidity | Router/MeshPoint: 5 to 95% Noncondensing |
| Certifications | Router/MeshPoint: CE, FCC, IC |
| Software | |
| Wi-Fi Standards | Up to Wi-Fi 6 |
| Wi-Fi Functions | MU-MIMO, OFDMA, Tx-Beamforming |
| Power Save | Yes |
| Wireless Security | WPA2 |
| VLAN | Yes |
| Advanced QoS | Yes |
| Guest Traffic Isolation | Yes |
| Concurrent Clients | Yes |
| Supported Data Rates | 802.11a: 54 Mbps 802.11b: 11 Mbps 802.11g: 54 Mbps 802.11n: 600 Mbps + 600 Mbps 802.11ac: 1733 Mbps + 800 Mbps 802.11ax: (Backbone) 4800 Mpbs Router-Mesh Connection 802.11ax: (Available to Clients) 4800 Mbps + 1148 Mbps |
| Operating Frequency* | 2.4 GHz: 2412 - 2472 MHz 5 GHz: 5150 - 5875 MHz *Depends on regulatory region |
