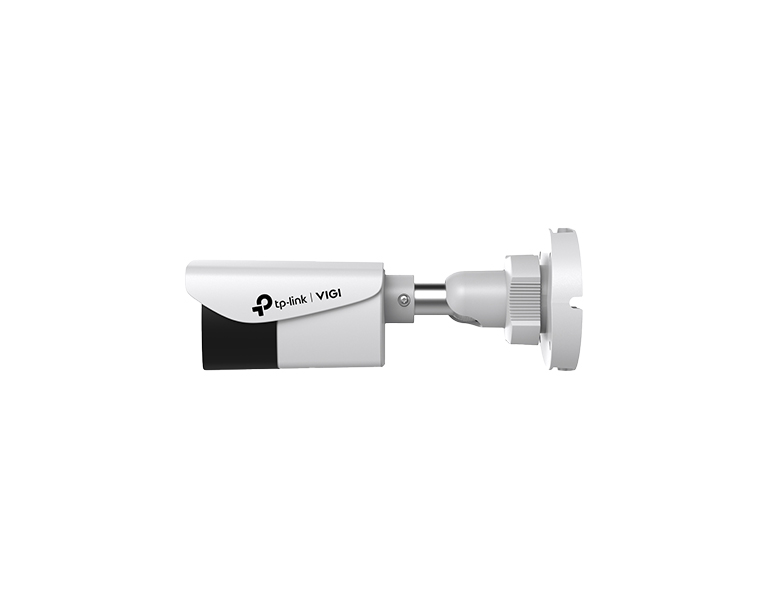

TP-LINK VIGI C330-2.8 V1.2 3MP Outdoor Full-Color Bullet Network Camera (2.8mm)

Product Code:
VIGI C330-2.8
Manufacturer Tp-link
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews
TP-LINK VIGI C330-2.8 V1.2 3MP Outdoor Full-Color Bullet Network Camera (2.8mm)

CAUTION!!! Package doesn't include power supply!!!

• 3MP Super-High Definition and 24h Full-Color
• Human & Vehicle Classification
• Smart Detection
• Smart Video Enhancement Technology
• Built-In Microphone
• IP67 Waterproof
• H.265+ Compression Technology

Smart Video Enhancement Technology
• DWDR: Enhances video quality by improving dynamic range and detail presentation, making it perform excellently in diverse lighting conditions.
• Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
• 3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details
• White Balance: White Balance ensures neutral whites in an image, regardless of the lighting conditions.

Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.*

*Calculations based on laboratory testing using a 3MP VIGI camera, and an actual performance may vary according to the amount of activity recorded, resolution and other variables.

Warranties - Returns:
Money Return: Repair - Replacement:
20 days 36 months



SPECIFICATIONS
Camera
Image Sensor 1/2.8” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Min. Illumination 0.005 Lux; 0 Lux with IR/White Light
Day & Night IR Cut Filter
Day/Night Switch Unified/ Scheduled/ Auto
Lens
Type Fixed Focal Lens
Focal length 2.8/4/6 mm
Aperture F1.6
FOV Horizontal FOV: 107.5°, Vertical FOV: 57.2°, Diagonal FOV: 128.7°
Lens Mount M12
DORI Distance Detect: 52 m
Observe: 22 m
Recognize: 10 m
Identify: 5 m
Angle Adjustment (manual)
Range • Pan: 0° to 360°
• Tilt: 0° to 90°
• Rotation: 0° to 360°
Illuminator
IR LED Quantity: 2
Range: 30m
Wavelength: 850nm
White LED Quantity: 2
Range: 30m
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
Video
Max. Resolution 2304 × 1296
Main Stream Frame Rate:1fps, 5fps, 10fps, 15fps, 20fps, 25fps
Resolution:2304x1296, 2048x1280, 1920x1080, 1280x720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
Resolution:704x576, 640x480, 352x288, 320x240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control CBR, VBR
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Image Settings Mirror
Brightness
Contrast
Saturation
Sharpness
Exposure
WDR
White Balance
Prevent Overexposure to Infrared Light
HLC Adjustable by Client Software
Rotation(90°/270°)
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range DWDR
SNR ≥ 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Setting Yes
Audio
Audio Input Yes
Audio Compression Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)
Network
Protocols TCP/IP
UDP
ICMP
HTTP
HTTPS
DHCP, DNS, RTSP
NTP
UPnP
SSL/TLS
FTP/SFTP
RTP
IPv4
IPv6
ARP
ONVIF Yes
API Open Network Video Interface (Profile S)
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, VIGI Security Manager, Web UI
Web Browser Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
Cloud Yes
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Alarm and Event Management
Smart Event • Human & Vehicle Classification • Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • Abnormal Sound Detection • People Detection • Vehicle Detection
Basic Event • Motion Detection
• Video Tampering Detection
• Exception ( Illegal Login)
Alarm Linkage • White Light Flashing
• Message Push
Output Notification Message Push
Interface
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Power DC Power Port
Built-in Microphone Yes; Records Anything Going on within a 15-ft Radius of the Camera
General
Operating Temperature -30–60 °C
Storage Temperature -40–60 °C
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)
Package Contents • VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
Power Supply • 12V DC ± 5%, Max. 5.5 W, 5.5mm Coaxial Power Plug
• PoE: 802.3af/at, class 0, Max. 6 W
Audio Communication Built-In Microphone
Material Plastic
Net Weight 0.32 Kg
Gross Weight 0.48 Kg
Protection IP67 Waterproof
Product Dimensions 78.5 × 188.0 × 71.5 mm
Certifications CE, NTRA, VCCI, BSMI
