VIGI-C340-2.8-1

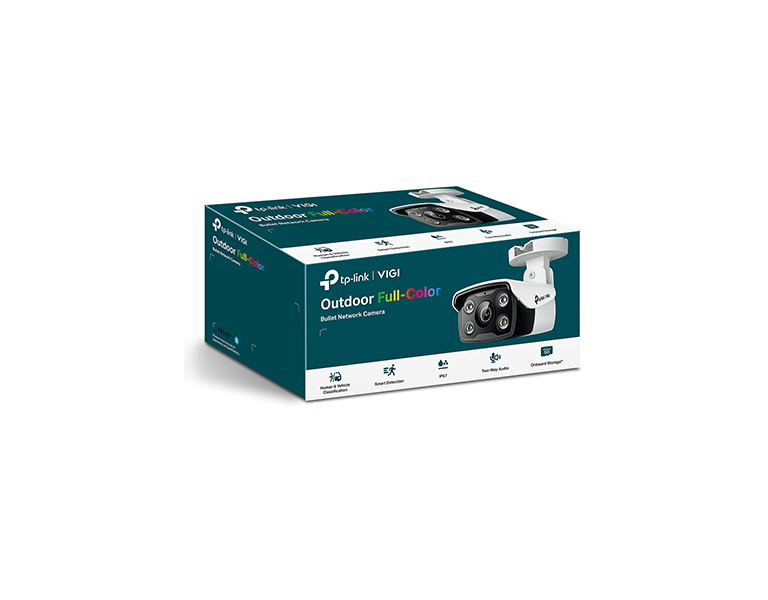

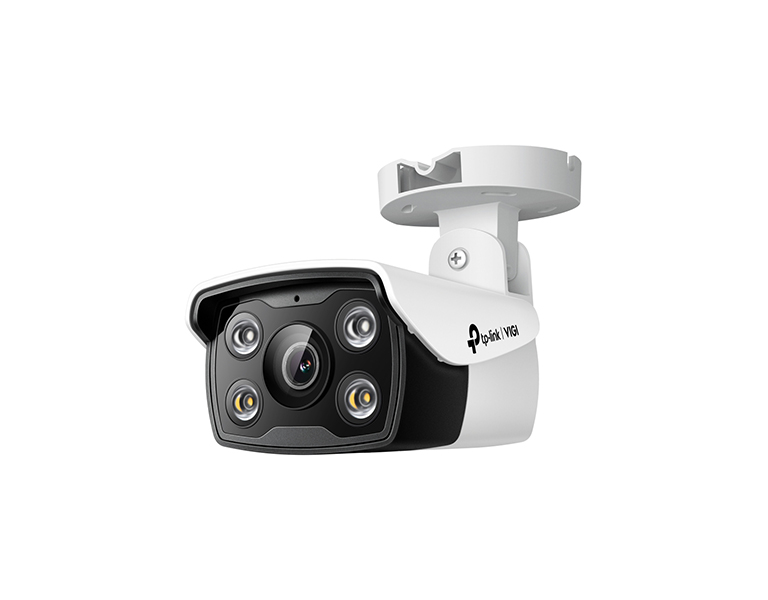

TP-LINK VIGI C340-2.8 V2.2 4MP Outdoor Full-Color Bullet Network Camera (2.8mm)

Product Code:
VIGI C340-2.8
Manufacturer Tp-link
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews
TP-LINK VIGI C340-2.8 V2.2 4MP Outdoor Full-Color Bullet Network Camera (2.8mm)

CAUTION!!! Package doesn't include power supply!!!

 4MP Super-High Definition and 24h Full-Color
• Human & Vehicle Classification
• Smart Detection
• Smart Video Enhancement Technology
• Active Defense and Two-Way Audio
• IP67 Waterproof
• H.265+ Compression Technology

Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.

We keep an eye on your business.
Smart Detection, backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.

Active Defense
Warn potential intruders instantly with sound and light when abnormal events

Every Event is Under Your Control.
VIGI camera intelligently detect activities, inform you instantly and response automatically by smart detection and two-way audio.

Never miss a detail.
SmartVid-Smart Video Enhancement, VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.

More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Outdoor PoE Connection, Simple Wiring
Just connect your camera via an RJ45 cable, then power supply and data transmission are all settled. Waterproof hardware protect stable performance in outdoor scenarios.

Flexible Management and Storage
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each methods, as well as onboard storage with SD card slot  (up to 256 GB).

Flexible Installation
Find the perfect vantage point by simply securing your camera to ceiling, pole or wall.

One system. Full security.
Run your business with peace of mind. The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.


Warranties - Returns:
Money Return: Repair - Replacement:
20 days 36 months



SPECIFICATIONS
Camera
Image Sensor 1/3” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Min. Illumination 0.005 Lux; 0 Lux with IR/white light
Day/Night Mechanism IR Cut Filter
Day/Night Switch Unified/ Scheduled/ Auto
Lens
Focal Length Fixed Focal Lens
Focal Length 2.8 mm
Aperture 2.8 mm: F1.6
FOV Horizontal FOV: 102.5°, Vertical FOV: 55.2°, Diagonal FOV: 122.1°
Lens Mount M12
DORI Distance Detect: 64 m
Observe: 27 m
Recognize: 13 m
Identify: 6 m
Angle Adjustment
Range Pan: 0° to 360°
Tilt: 0° to 90°
Rotation: 0° to 360°
Illuminator
IR LED Quantity: 2
Range: 30m
Wavelength: 850nm
White LED Quantity: 2
Range: 30m
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
Video
Max. Resolution 2560 X 1440
Main Stream • Frame Rate 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps
Sub-Stream • Frame Rate 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution: 640x480, 352x288, 320x240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control CBR, VBR
Video Compression • Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
H.264 Type High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate • Main Stream: 256 Kbps to 3 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps
Image Settings • Mirror
• Brightness
• Contrast
• Saturation
• Sharpness, Exposure, WDR,
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software
• Rotation (90°/270°)
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range DWDR
SNR ≥ 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Setting Yes
Audio
Audio Communication Two-Way Audio
Audio Input Yes
Audio Output Yes
Audio Compression Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)
Network
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIF Yes
API Open Network Video Interface (Profile S)
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, VIGI Security Manager, Web UI
Web Browser • Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and above
Built-in Speaker Yes
Cloud Yes
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Alarm and Event Management
Smart Event • Human & Vehicle Classification • Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned/Removal Detection • Scene Change Detection • Abnormal Sound Detection • People Detection • Vehicle Detection • Loitering Detection
Basic Event • Motion Detection • Video Tampering Detection • Exception ( Illegal Login)
Alarm Linkage • Memory Card Video Recording • Message Push • Audible Warning • White Light Flashing • Upload Capture to FTP
Linkage MethodN/A N/A
Output Notification Message Push
 Interface
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port
On-board Storage Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB**
Built-in Speaker Yes
Built-in Microphone Yes; Records Anything Going on within a 15-ft Radius of the Camera
Audio N/A
Alarm N/A
Reset Button Yes
Power DC Power Port
General
Operating Temperature -30–60 °C
Power Supply • 12V DC ± 5%, Max. 7 W, 5.5mm Coaxial Power Plug
• PoE: 802.3af/at, class 0, Max. 8 W
Protection IP67 Waterproof
Material Plastic
Net Weight 0.34 Kg
Gross Weight 0.50 Kg
Product Dimensions 78.5× 188.0 × 71.5 mm (
Certifications CE, NTRA, VCCI, BSMI, FCC



There are yet no reviews for this product.
