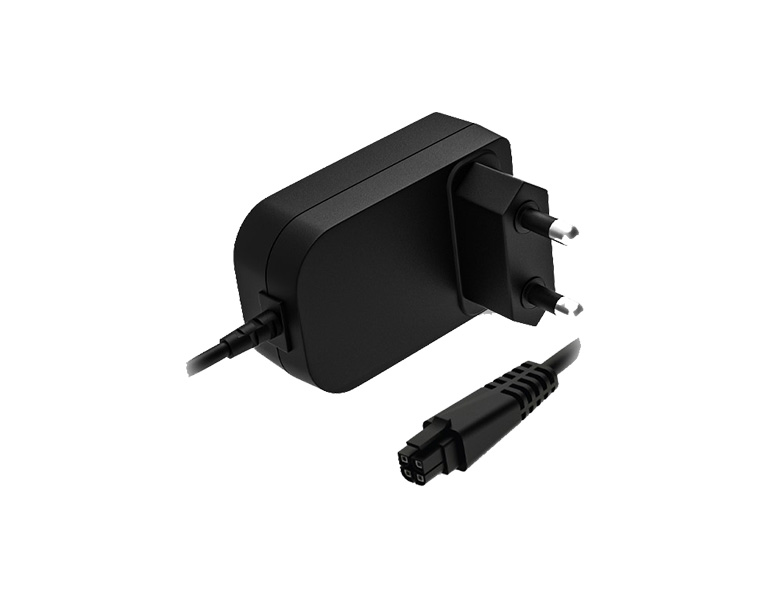

Power supply for RUTΧ12, RUTX14.
Specifications | ||
Parameter | Rated Value | Absolute Maximum |
Input Voltage | 100-240 VAC | 90-264 VAC |
Input Frequency | 50/60 Hz | 47-63 Hz |
Input Current (@100-240VAC) |
0.6 A | - |
Inrush Current (@100-240VAC) |
- | 40 A |
Output Voltage | 12 VDC | 11.40-12.60 VDC |
Output Current | 0-2 A | - |
Overshoot | - | 10 % |
Other Parameters | ||
Short-Circuit protection | Yes | |
Input protection | Fuse | |
HIPOT (Dielectric Withstand Test) |
Primary to Secondary: AC3000V | |
MTBF | 50000 h | |
Input connector | EU | |
Output connector | 4-pin, 3mm pitch | |
Certification | EN 55032:2015, EN 55035:2017, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 62368-1:2014 + A11:2017, IEC62321-7-1:2015, IEC62321-6:2015, IEC62321-5:2013, IEC62321-4:2013, IEC62321:2008 Annex C, UL 60950-1, CSA C22.2 No. 60950-1-07 |
