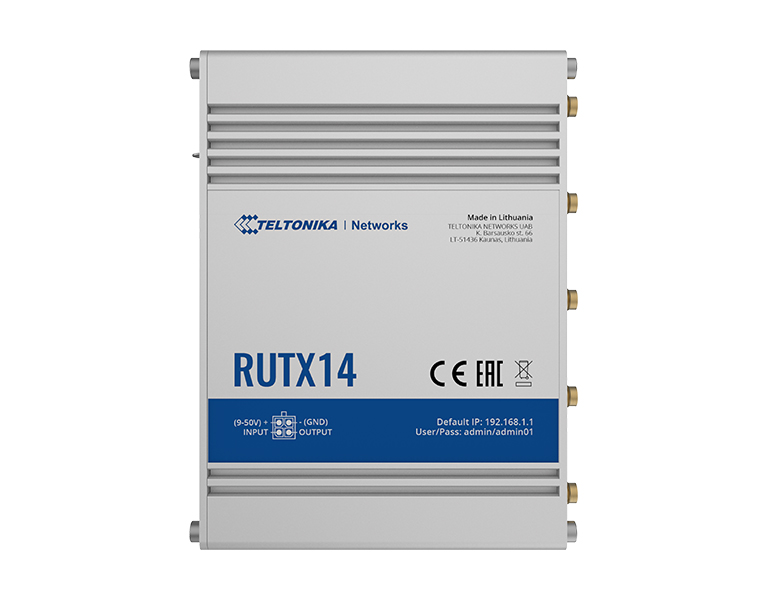

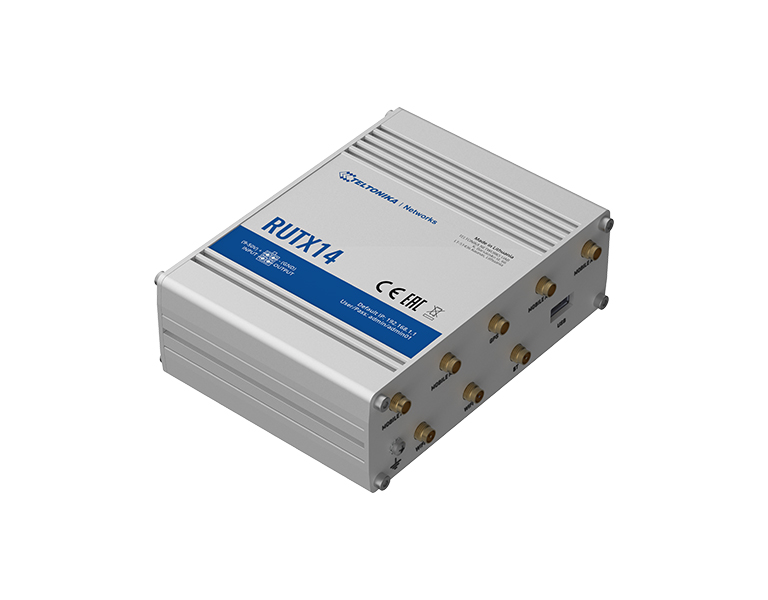

RUTX14 is the fastest single modem LTE router in Teltonika's portfolio. 5 x Gigabit Ethernet ports, Wave-2 802.11ac Dual-Band Wi-Fi, Bluetooth LE, USB interfaces, dual SIM for advanced throughput and ultra-reliable connectivity. Equipped with advanced security features like multiple VPN's, firewall & cyber attack prevention. Combination of fast LTE CAT12 connectivity, wide range of physical interfaces, extensive RutOS functionality and great remote management capabilities make this device an excellent choice for primary or backup connectivity.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for indoor use. |
|
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for indoor use. |
Warranties - Returns: | |
Money Return: | Repair - Replacement: |
20 days | 24 months |
Specifications | |
Hardware | |
CPU | Qualcomm, 4 x ARM Cortex A7, 717 MHz |
Memory | 256 MBytes Flash, 256 MBytes RAM |
Powering option | 4pin power socket, 9-50 VDC |
SIM | 2 x External SIM holders (2FF) |
Antenna connectors | 4 x SMA for mobile, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GPS |

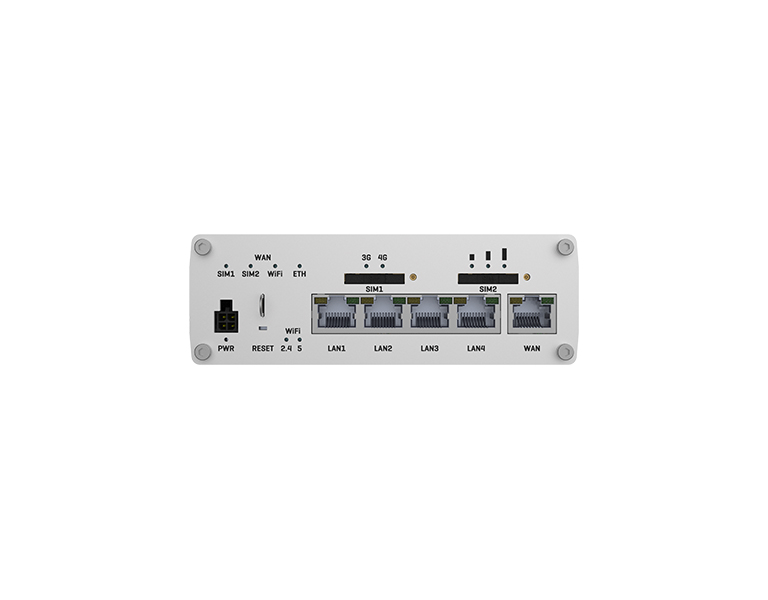

Ethernet | 5 x 10/100/1000 Ethernet ports: 1 x WAN (configurable as LAN), 4 x LAN |
WiFi | IEEE 802.11b/g/n 2.4GHz, IEEE 802.11n/ac 5GHz, Access point (AP), Station (STA) |
GNSS | GPS, GLONASS, BeiDou, Galileo, QZSS |
Bluetooth | 4.0 (Low energy) |
Connectors | 1 x 4 pin DC, 5 x Ethernet, 4 x SMA for LTE, 2 x WiFi RP-SMA, 1 x SMA for GNSS, 1 x RP-SMA for Bluetooth |
Inputs/Outputs | On 4pin socket: 1 x Digital input, 1 x Digital open collector output |
Other | 1 x USB host, 1 x Grounding screw |
Status LEDs | 4 x WAN type, 2 x Connection type, 3 x Signal strength, 2 x WiFi, 10 x Ethernet, 1 x Power |
Operating temperature | -40 °C to 75 °C |
Housing | Aluminium housing with DIN rail mounting option and grounding capability |
Dimensions(WxHxD) | 132 x 44 x 95 mm |
Weight | 515 g |
Software | |
Operating system | RutOS (OpenWrt based Linux OS) |
Mobile features | Multiple PDN, Auto APN, Band lock, SIM switch, Operator black/white list (planned), Data/SMS limits |
Network | Failover (Network backup), VLAN, QoS, Load Balancing |
Routing | Static routes, Dynamic routes (BGP, OSPFv2, RIPv1/v2, EIGRP, NHRP), Routing rules |
Monitoring and management | WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS |
Cloud solutions | RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx |
Hotspot | External/Internal Radius, SMS OTP, MAC authentication, Walled Garden |
Supported Hotspot platforms | IronWiFi, HotspotSystem, Cloud4Wi, SAI + WiFi, MugiCloud, Purple.ai |
Standard Package Contains | • Router RUTX14 • 24 W PSU • 4 x LTE antennas (swivel, SMA male) • 2 x WiFi antennas (magnetic mount, RP-SMA male, 1.5 m cable) • 1 x GNSS antenna (adhesive, SMA male, 3 m cable) • 1 x Bluetooth antenna (magnetic mount, RP-SMA male, 1.5 m cable) • Ethernet cable (1.5 m) • SIM Adapter kit • QSG (Quick Start Guide) • RMS Flyer • Packaging box |
