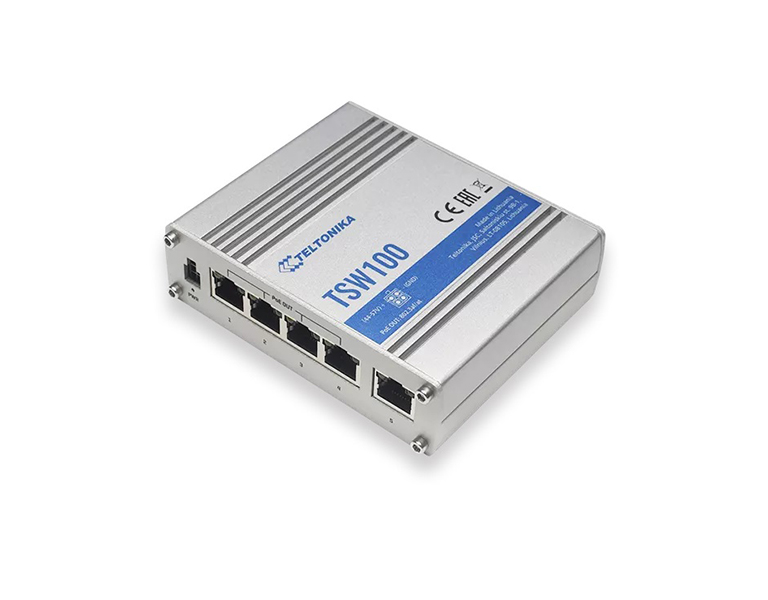

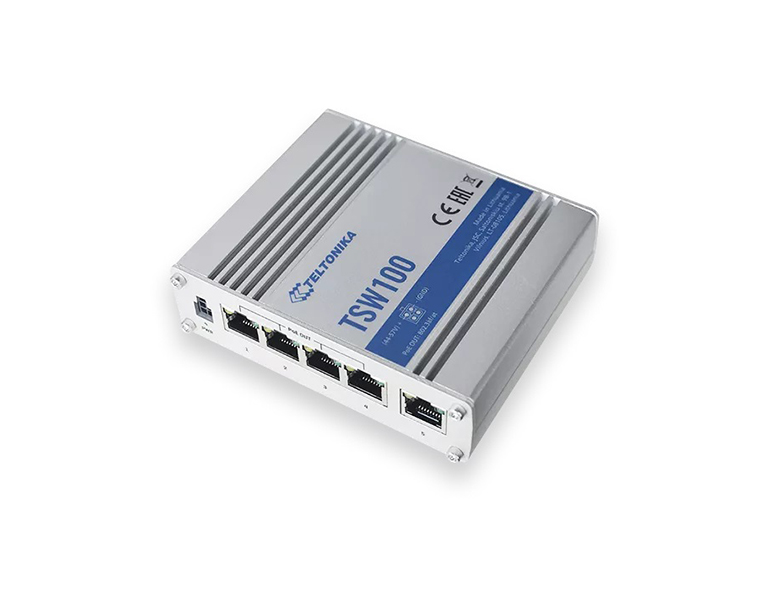

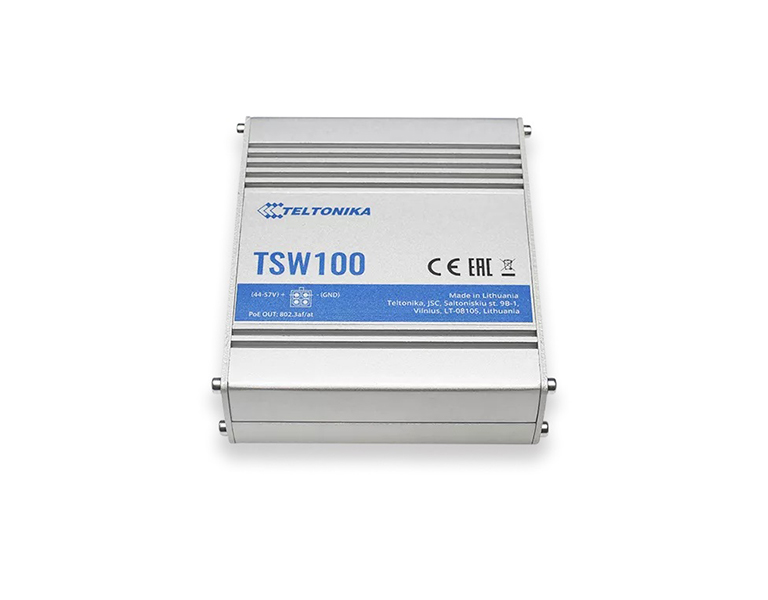

• TSW100 is the first industrial unmanaged switch from Teltonika Networks.
• Equipped with five Gigabit Ethernet ports, four of which support IEEE802.3af and IEEE802.3at Power-over-Ethernet standards (PoE).
• Classified as power source equipment (PSE), it enables centralization of the power supply, providing up to 30 watts per port and reducing the effort for installing power.
• It has 10/100/1000 Mbps Ethernet ports for an economical high-bandwidth solution.
• Ideal for professional high bandwidth applications to provide both: reliable data connection and power supply.
Warranties - Returns: | |
Money Return: | Repair - Replacement: |
20 days | 24 months |
Specifications | |
Hardware | |
Powering option | 4pin power socket, 7-58 VDC |
Power consumption | Idle: 2 W / Max (no PoE): 9 W / PoE Max: 129 W |
PoE standart | 802.3af/at (max 30 W per port, total power budget 120W) |
Ethernet | 5 x 10/100/1000 Ethernet ports: 4 x PoE Out, 1 x ETH |
Status LEDs | 10 x Ethernet, 1 x Power |
Ingress protection rating | IP30 |
Operating temperature | -40 °C to 75 °C |
Housing | Aluminium housing with wall or DIN rail mounting option and grounding capability |
Dimensions | 115 x 32 x 95 mm |
Weight | 350 g |
Performance | |
Bandwidth | 10 Gbps |
Packet buffer | 128 KB |
MAC address table size | 2K entries |
Auto MDI/MDI-X Cable Detection | Yes |
Standard Package Contains | • TSW100 • 62 W PSU • QSG (Quick Start Guide) • Packaging box |
*Provided power supply only allows 60 W PoE power budget at PSE, to reach maximum 120 W at PSE >130 W power PSU must be used.
