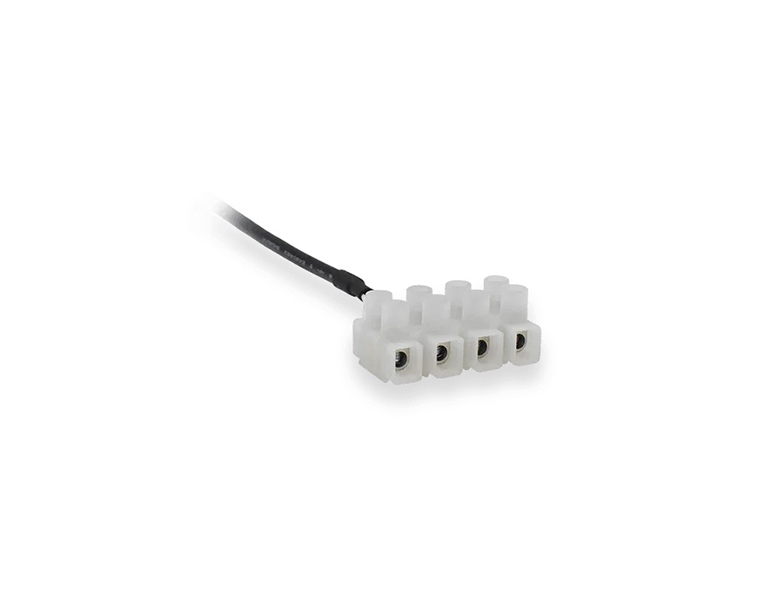

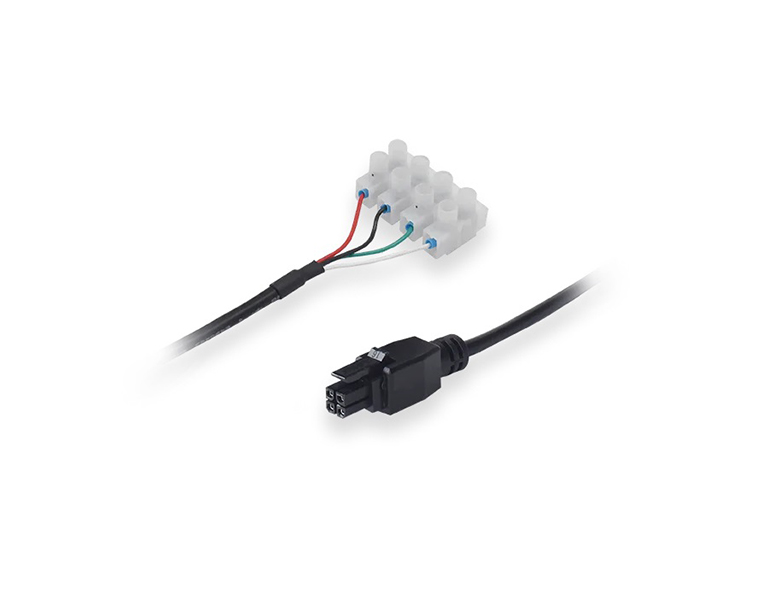

Power cable with 4-way screw terminal. Compatible with RUTX08, RUTX09, RUTX10, RUTX11, RUT230, RUT240, RUT850, RUT900, RUT950, RUT955, TRB140, TRB142 and TRB145.
Specifications | |
Parameter | |
Input connector | 4-way screw terminal |
Output connector | 4-pin, 3mm pitch |
Cable | 4x0.129 mm2 (26 AWG), 2000 mm |
RoHS Compliant | Yes |
Color Coding | |
1 Red | Power + |
2 Black | Ground - |
3 Green | Input/Output/NC |
4 White | Input/Output/NC |
