• 8× 10/100 Mbps RJ45 ports
• 4× PoE ports transfer data and power on individual cables
• Works with IEEE 802.3af compliant PDs
• Up to 250m data and power transmitting range under Extend Mode• Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
• Supports PoE Power up to 41 W for all PoE ports• Plug and play with no configuration required

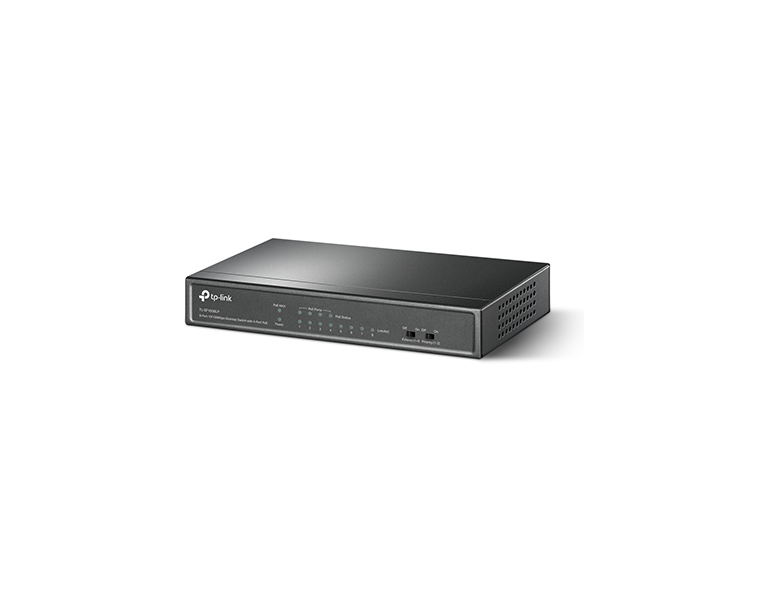

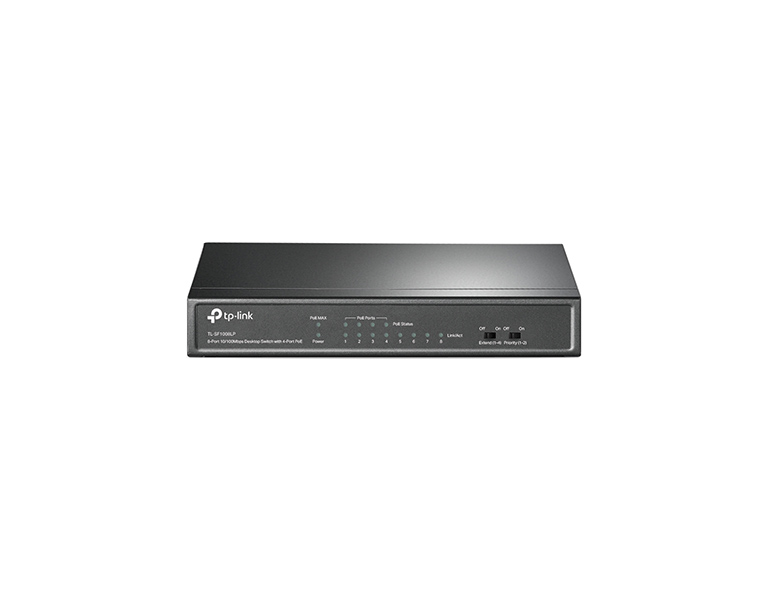

Professional Fast Ethernet Switch with 4 PoE Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m

Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications
Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Plug and Play, No Configuration Required
1) Plug In
2) Connect Devices
3) Enjoy

Ideal for IP Surveillance —Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.

Priority Video Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.

Intelligent Power Management
When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Durable Metal Casing
The interior components of TL-SF1008LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1008LP delivers switching performance you can depend on.

^*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
^**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	60 months

Specifications
Standards	IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af
Network Ports	8 * 10/100 Mbps RJ45 ports with 4 PoE ports (port 1 to port 4)
Network Media (Cable)	10Base-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100 Ω STP (maximum 100 m) 100Base-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100 Ω STP (maximum 100 m)
PoE	PoE Standard: IEEE 802.3afPoE Port 1–4, up to 15.4 W per portPoE Power Budget 41 W*
Auto-Negotiation	YES
Auto MDI/MDIX	YES
PoE Power on RJ45	Power+: pin 3 & pin 6 Power -: pin 1 & pin 2
Max Power Consumption	2.2 W (220 V/50 Hz no PD connected) 47.1 W (220 V/50 Hz with 41 W PD connected)
Max Heat Dissipation	7.5 BTU/h (no PD connected) 160.61 BTU/h (with 41 W PD connected)
Forwarding Mode	Store and Forward
Switch Capacity	1.6 Gbps
MAC Address Table	2k, Auto-learning, Auto-aging
Extend Mode	YES
Priority Mode	YES
Flow Conrol	YES
Fanless	YES
LED	Power, Link/Act, PoE Status, PoE MAX
Dimensions	171 x 98 x 27 mm
Certifications	CE, FCC
Environment	Operating Temperature: 0°C to 40°C Storage Temperature: -40°C to 70°C Operating Humidity: 10% to 90% RH,non-condensing Storage Humidity: 5% to 90% RH, non-condensing
