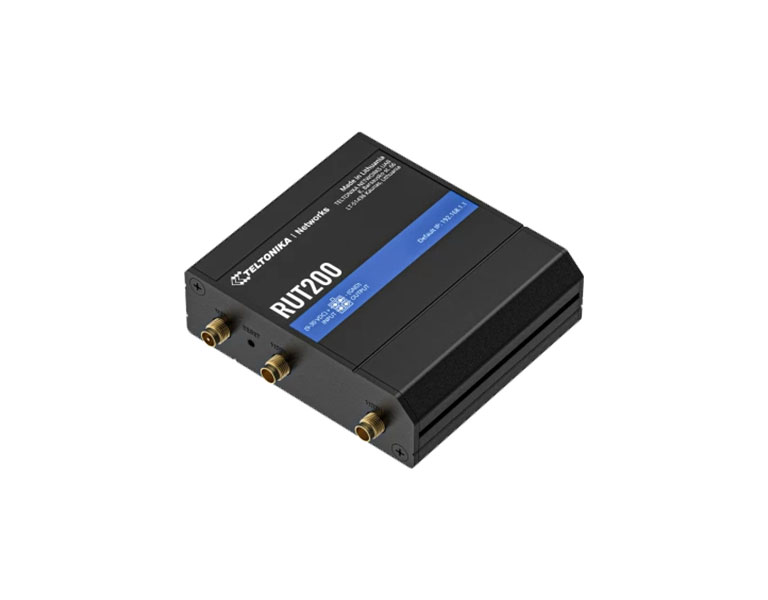

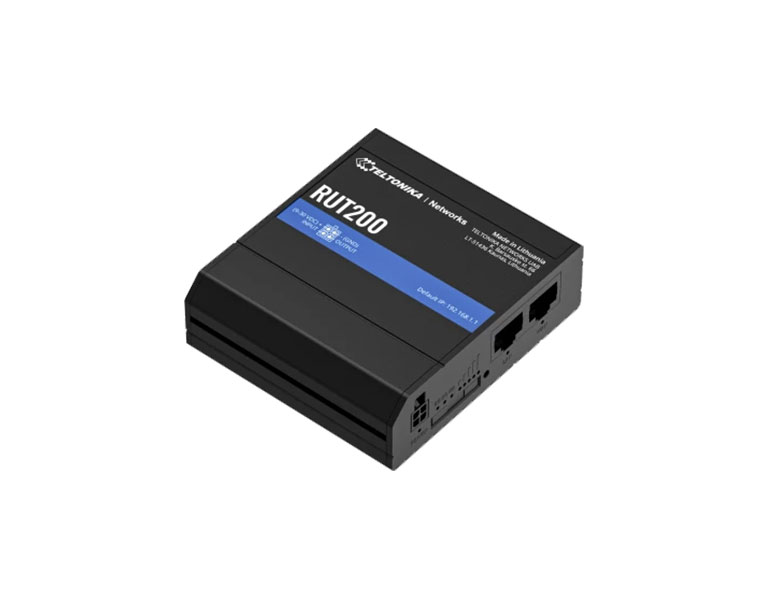

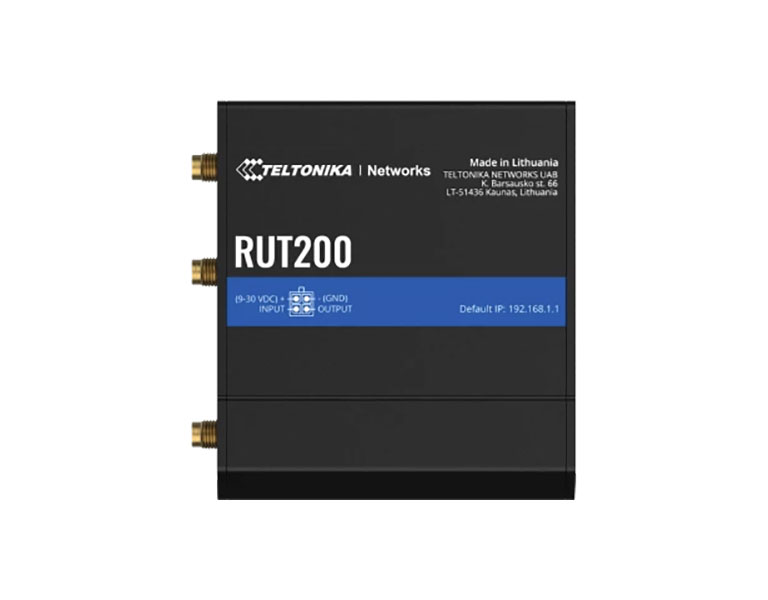

RUT200 brings the top-rated features of our all-time bestseller RUT240 and is compatible with networks in Asia, CIS, the Middle East, Africa, and South America.Equipped with 4G LTE, Wi-Fi, and two Ethernet ports, this model is perfect to quickly set up primary and backup connectivity with remote management capabilities.Due to its compact size, industrial design, and I/Os, this model is very suitable in manufacturing, automation, transportation, and other industrial application scenarios that require mission-critical connectivity in rigorous conditions.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for indoor use. |
Warranties - Returns: | |
Money Return: | Repair - Replacement: |
20 days | 24 months |
Specifications | |
Hardware | |
Mobile | 4G/LTE (Cat 4), 3G, 2G |
CPU | Mediatek, 580 MHz, MIPS 24KEc |
Storage | 16 MB Flash |
Memory | 128 MB RAM |
Powering option | 4pin power socket, 9-30 VDC |
SIM | 1 x External SIM holder (2FF) |

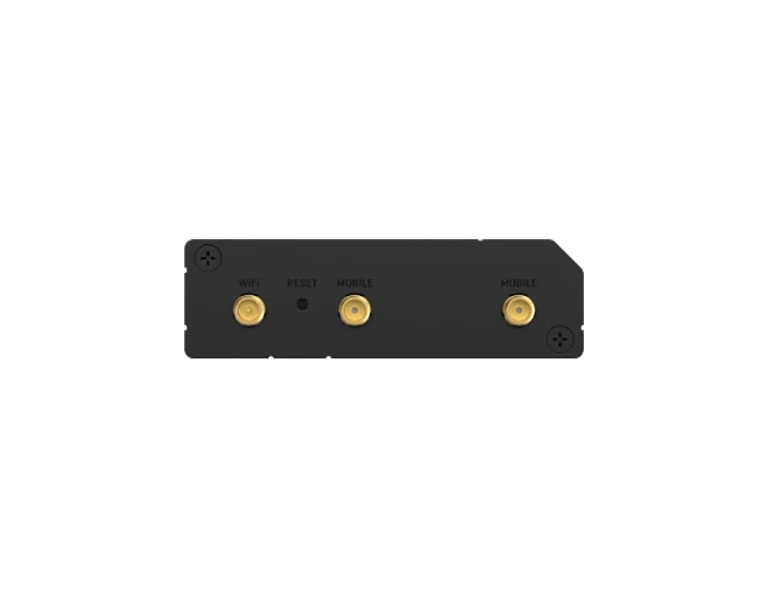

Antenna connectors | 2 x SMA for mobile, 1 x RP-SMA for WiFi |

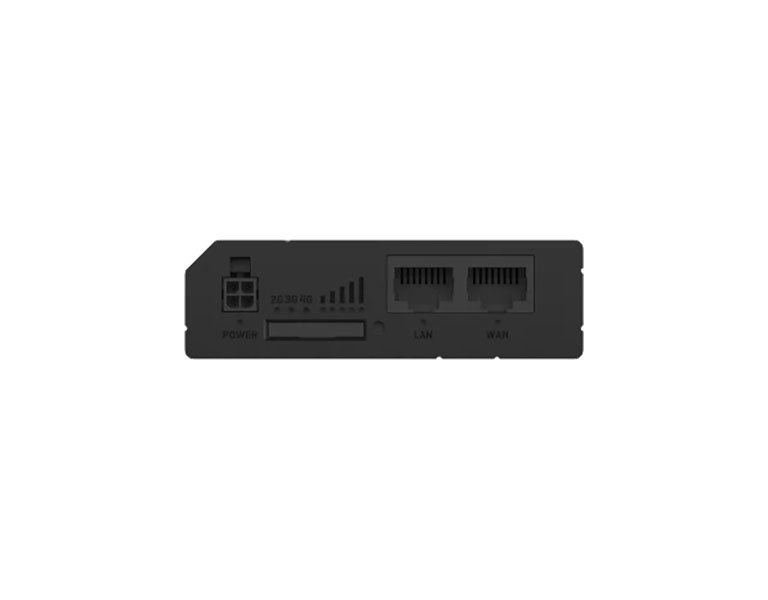

Ethernet | 2 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 1 x LAN |
WiFi | IEEE 802.11b/g/n, Access point (AP), Station (STA) |
Inputs/Outputs | On 4pin socket: 1 x Digital input, 1 x Digital open collector output |
Status LEDs | 3 x Connection type, 5 x Signal strength, 2 x Ethernet, 1 x Power |
Operating temperature | -40 °C to 75 °C |
Housing | Aluminium housing with DIN rail mounting option, plastic panels |
Dimensions (W x H x D) | 83 x 25 x 74 mm |
Weight | 125 g |
SOFTWARE | |
Operating system | RutOS (OpenWrt based Linux OS) |
Mobile features | Auto APN, Band lock |
Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, PPPoE, DHCP, Telnet |
Network | Failover (Network backup), VLAN, QoS, Load Balancing |
Security | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), Port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
VPN and tunneling | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard |
Monitoring and Management | WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS |
Connection monitoring | Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection |
Cloud solutions | RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx |
SMS features | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), Port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
Services | DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Traffic Logging |
Package Contents | • Router RUT200 • 9 W PSU • 2x Mobile antennas (swivel, SMA male) • 1x Wi-Fi antenna (swivel, RP-SMA male) • QSG (Quick Start Guide) • Packaging box |
